Module, Digital Audio Broadcasting Antenna: Removal

  1. Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
  2. Remove the driver side upper quarter trim panel. Refer to PANEL, QUARTER TRIM, REMOVAL .

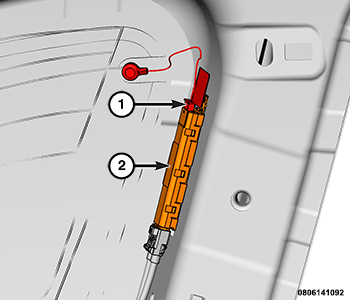

    GC0176899Courtesy of CHRYSLER GROUP, LLC
  3. Disconnect the digital audio broadcast antenna cable (1) from the digital audio broadcast antenna module (2).

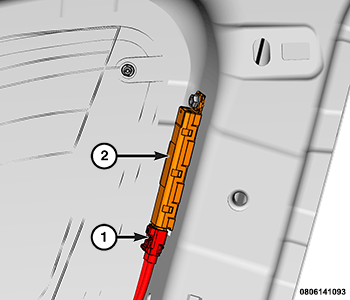

    GC0177023Courtesy of CHRYSLER GROUP, LLC
  4. Disconnect the two wire harness connector (1) from the digital audio broadcast antenna module (2).

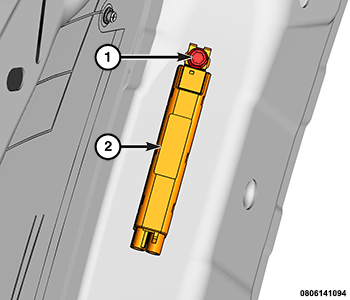

    GC0177025Courtesy of CHRYSLER GROUP, LLC
  5. Remove the fastener (1) and then remove the digital audio broadcast antenna module (2) from the C-pillar.
