Media Hub: Installation: Front

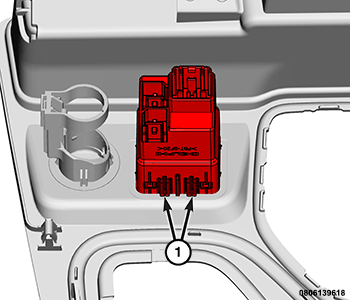

GC0186754Courtesy of CHRYSLER GROUP, LLC
  1. Insert the media hub into the shifter bezel.
  2. Securely engage the plastic retaining tabs (1).
  3. Install the shifter bezel. Refer to BEZEL, SHIFTER, INSTALLATION .
  4. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector to the negative battery cable.
