Insulator, Engine Mount, Rear: Installation

WARNING: This page is about a different variant/trim than selected.

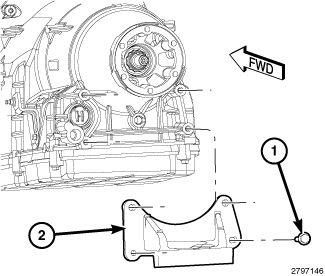

GC0145019Courtesy of CHRYSLER GROUP, LLC
  1. On 4x2 vehicles if removed, install the rear engine mount bracket (2) with four bolts (1) tightened to 33 Nm (24 ft. lbs.).

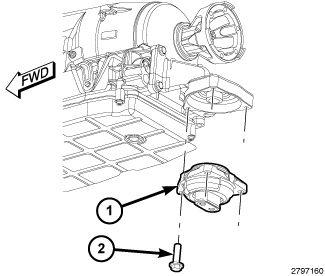

    GC0144303Courtesy of CHRYSLER GROUP, LLC
  2. On 4x2 vehicles, install the rear engine mount isolator (1) with three bolts (2) tightened to 61 Nm (45 ft. lbs.).

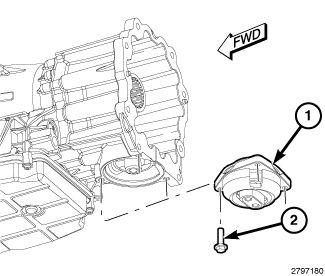

    GC0145020Courtesy of CHRYSLER GROUP, LLC
  3. On 4x4 vehicles, install the rear engine mount isolator (1) with three bolts (2) tightened to 61 Nm (45 ft. lbs.).

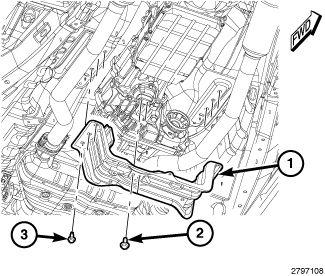

    GC0145018Courtesy of CHRYSLER GROUP, LLC
  4. Install the crossmember (1) with six bolts (3) tightened to 55 Nm (41 ft. lbs.).
  5. Lower the transmission so the weight is resting on the isolator.
  6. Install two bolts (2) to the rear engine mount isolator and tighten to 61 Nm (45 ft. lbs.).

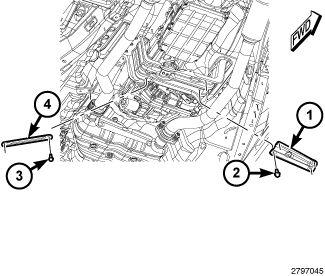

    GC0145017Courtesy of CHRYSLER GROUP, LLC
  7. Install the left crossmember brace (1) with four bolts (2) tightened to 55 Nm (41 ft. lbs.).
  8. Install the right crossmember brace (4) with two bolts (3) tightened to 55 Nm (41 ft. lbs.).
  9. Install the skid plate, if equipped. Refer to PLATE, SKID, TRANSFER CASE, INSTALLATION .
  10. Lower the vehicle.
