Exhaust Gas Temperature Sensor 1/4 - 2.0L: Installation

Courtesy of CHRYSLER GROUP, LLC

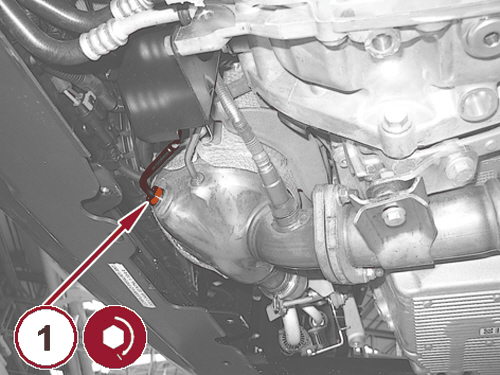

1. Install the Exhaust Gas Temperature (EGT) sensor 1/4, engage the wiring in the retainer clips and then tighten the sensor to the proper specification Refer to TECHNICAL SPECIFICATIONS .
2. Connect the EGT sensor 1/4 wire harness connector.
3. Connect and upstream oxygen sensor wire harness connector.
4. Install the belly pan. Refer to BELLY PAN, REMOVAL AND INSTALLATION .
5. Install the battery tray. Refer to TRAY, BATTERY, REMOVAL AND INSTALLATION .
6. Install the engine cover. Refer to COVER, ENGINE, REMOVAL AND INSTALLATION .
