Exhaust Gas Temperature Sensor 1/3 - 1.6L Diesel: Installation

Courtesy of CHRYSLER GROUP, LLC

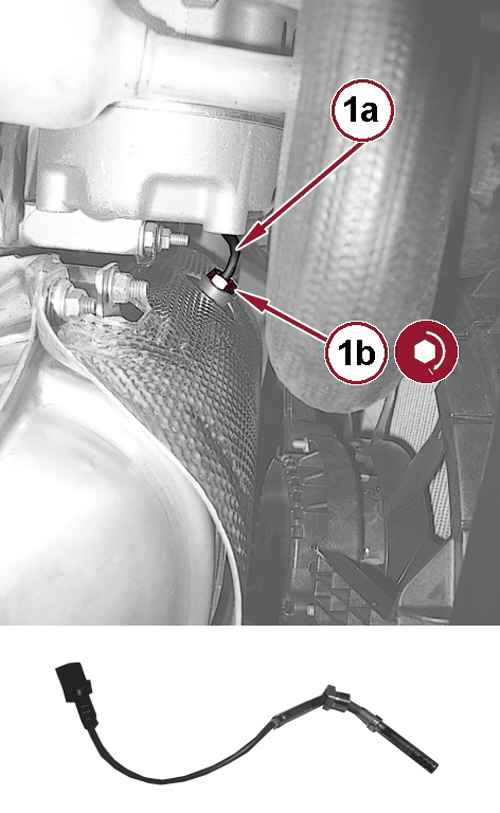

1. Install the Exhaust Gas Temperature (EGT) sensor (1a) and tighten the fitting (1b) to the proper specification Refer to TECHNICAL SPECIFICATIONS .
2. Connect the EGT sensor wire harness connector.
3. Install the right front splash shield and wheel. Refer to SHIELD, SPLASH, FRONT WHEELHOUSE, REMOVAL AND INSTALLATION .
4. Remove support and lower the vehicle.
