Removal And Installation: Removal

  1. Disconnect and isolate the negative battery cable(s). Refer to STANDARD PROCEDURE .
  2. Remove the Integrated Center Stack (ICS) module. Refer to MODULE, INTEGRATED CENTER STACK (ICSM), REMOVAL AND INSTALLATION .
    GC0182050Courtesy of CHRYSLER GROUP, LLC

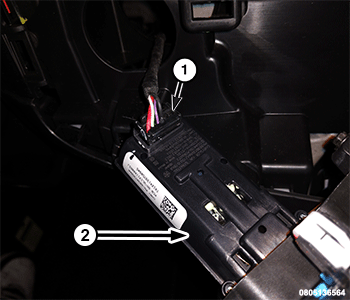

  3. Disconnect the Keyless Ignition Node (KIN) wire harness connector (1).
    GC0183721Courtesy of CHRYSLER GROUP, LLC

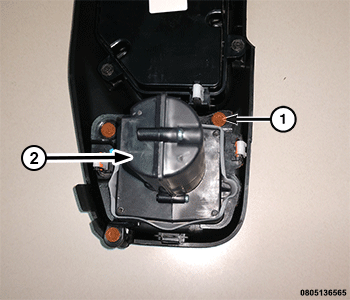

  4. Remove the fasteners (1) from the KIN.
  5. Remove the KIN from the ICS module.
