Removal And Installation: Removal

  1. Disconnect and isolate the negative battery cable(s). Refer to STANDARD PROCEDURE .

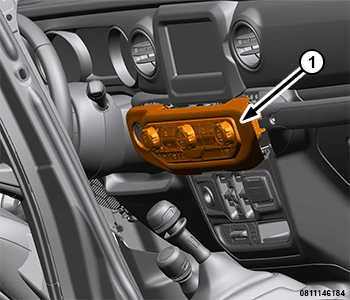

    GC0182222Courtesy of CHRYSLER GROUP, LLC
  2. Using trim stick C-4755 or equivalent, remove the Integrated Center Stack (ICS) and upper instrument panel center trim from the instrument panel.

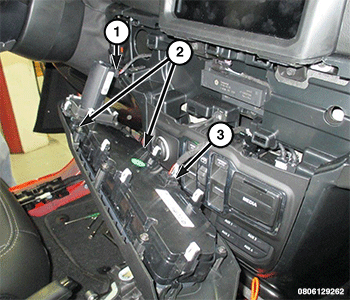

    GC0183522Courtesy of CHRYSLER GROUP, LLC
  3. Disconnect the wire harness connector (3) from the ICS.
  4. Disconnect the wire harness connector from the Keyless Ignition Node (KIN) (1).
  5. Remove the screws (2) from the ICS to the upper instrument panel center trim.
  6. Remove the ICS from the vehicle.
