Removal And Installation
To avoid serious or fatal injury when working on the High Intensity Discharge (HID) headlamp system, be certain to take the proper precautions. The headlamp switch must be in the OFF position. Disconnect and isolate the battery negative cable. There is a risk of fatal injury caused by contact with high voltage used in the HID headlamps. There is a risk of explosion or fire caused by highly flammable materials in the vicinity of damaged HID lighting elements. There is a risk of injury caused by exposure to Ultra Violet (UV) light, a risk of burns caused by high component operating temperatures, a risk of mercury poisoning through glass splinters produced by bursting HID lighting elements. There is also a risk of poisoning caused by inhalation of mercury vapors and by toxic salts and mercury compounds being ingested or coming into contact with the skin. Do not come into contact with parts that are under high voltage. Persons with active electronic implants (e.g. heart pacemakers) must never work on HID headlamps. Wear insulated safety shoes, safety glasses and protective gloves. Remove flammable materials and ensure sufficient ventilation in the working area.
REMOVAL
- Disconnect and isolate the negative battery cable(s). Refer to STANDARD PROCEDURE .
- Remove the instrument panel center trim.
- Remove the instrument panel upper substrate. Refer to PANEL, INSTRUMENT PANEL TRIM, REMOVAL AND INSTALLATION
.

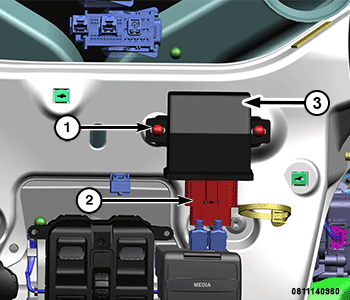

- Disconnect the wire harness connector (2) from the bottom of the Automatic Headlamp Leveling Module (AHLM).
- Remove the two retainers (1) securing the AHLM to the instrument panel.
- Remove the AHLM from the vehicle.
INSTALLATION
- Position the AHLM to the instrument panel for installation.
- Using two retainers, secure the AHLM to the instrument panel.
- Connect the wire harness connector to the AHLM.
- Install the instrument panel upper substrate. Refer to PANEL, INSTRUMENT PANEL TRIM, REMOVAL AND INSTALLATION .
- Install the instrument panel center trim.
- Connect the negative battery cables. Refer to STANDARD PROCEDURE .
- Using the diagnostic scan tool, perform the Automatic/Advanced Headlight Module calibration routine.
