Removal And Installation: Removal

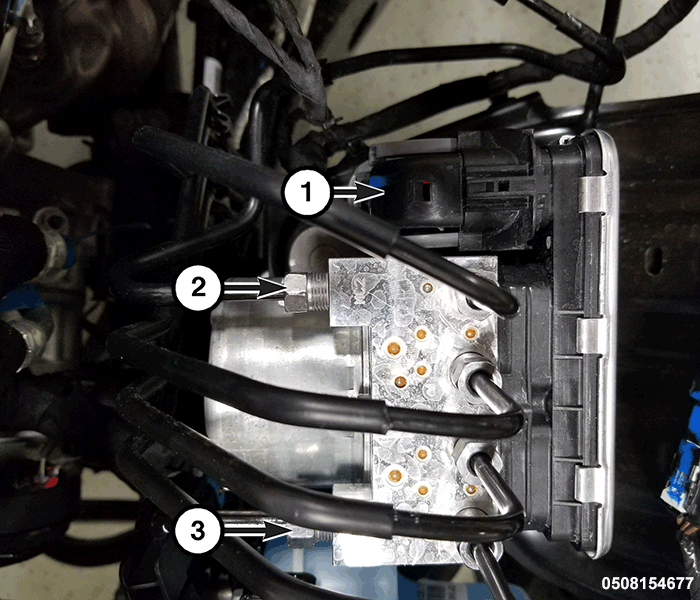

GC0182319Courtesy of CHRYSLER GROUP, LLC
  1. Disconnect and isolate the negative battery cable(s). Refer to STANDARD PROCEDURE .
  2. Disconnect the Anti-lock Brake System (ABS) module wire harness connector (1).

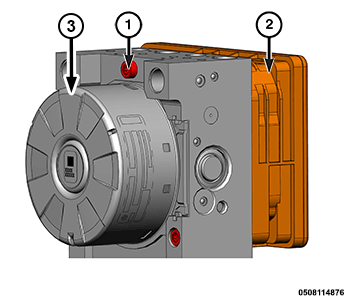

    GC0181578Courtesy of CHRYSLER GROUP, LLC
  3. Remove the three Anti-lock Brake System (ABS) module bolts (1).
  4. Remove the ABS module (2) from the Hydraulic Control Unit (HCU).
