No Response From Abs (Anti-Lock Brake System Module): Notes
WARNING: This page is about a different car, the 2018 Fiat 500L. However, it is still accessible from the selected car via links, so may be relevant.

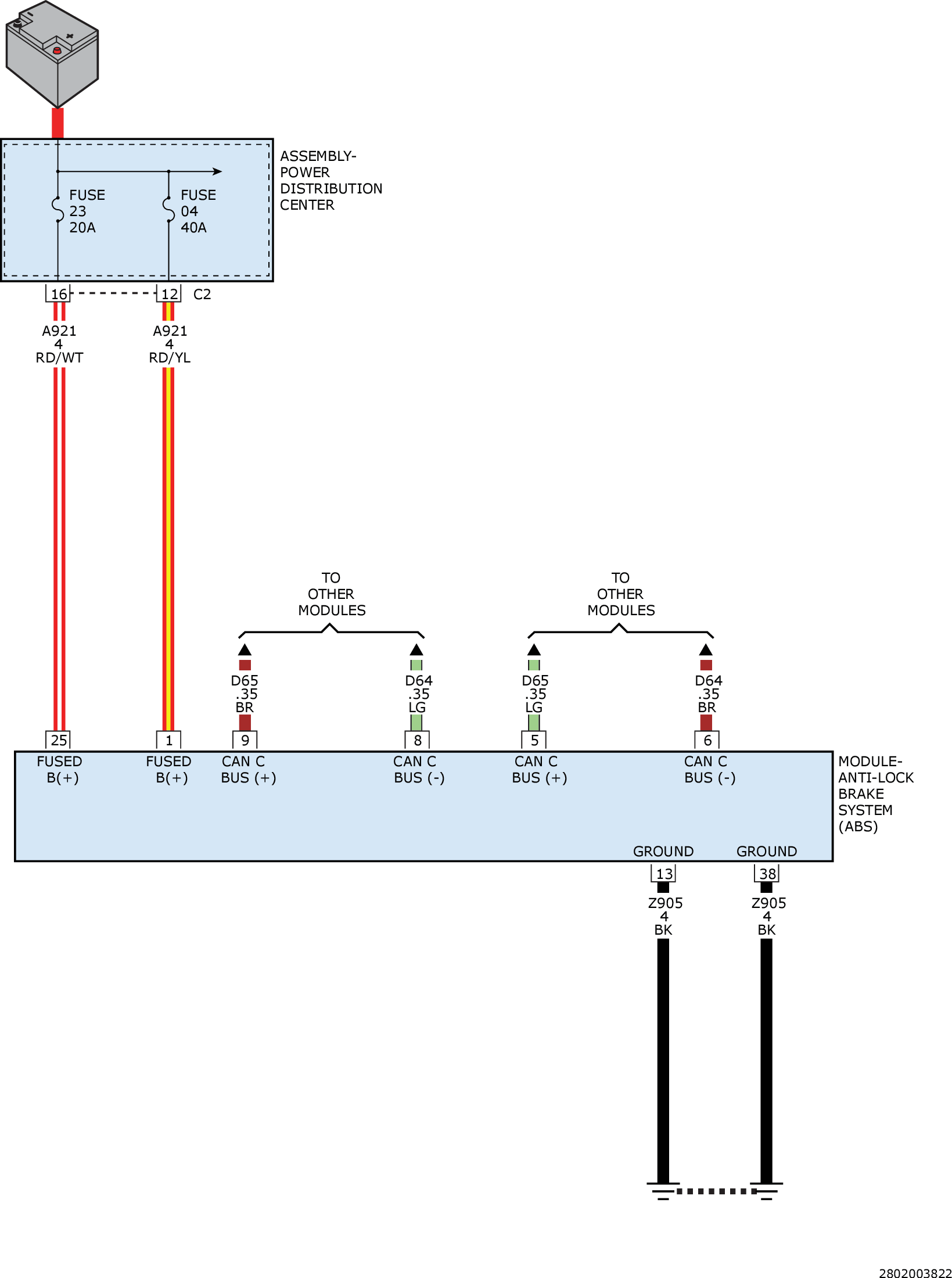

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article
.
 Courtesy of CHRYSLER GROUP, LLC
|
| Possible Causes |
| POWER CIRCUITS OPEN OR SHORTED |
| GROUND CIRCUITS OPEN |
| CAN C BUS (+) CIRCUIT OPEN |
| CAN C BUS (-) CIRCUIT OPEN |
| ANTI-LOCK BRAKE SYSTEM (ABS) MODULE |
