B101A-12-Rear Ceiling Left Light Command - Circuit Short To Batter: Notes

WARNING: This page is about a different car, the 2018 Fiat 500L. However, it is still accessible from the selected car via links, so may be relevant.

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article  .

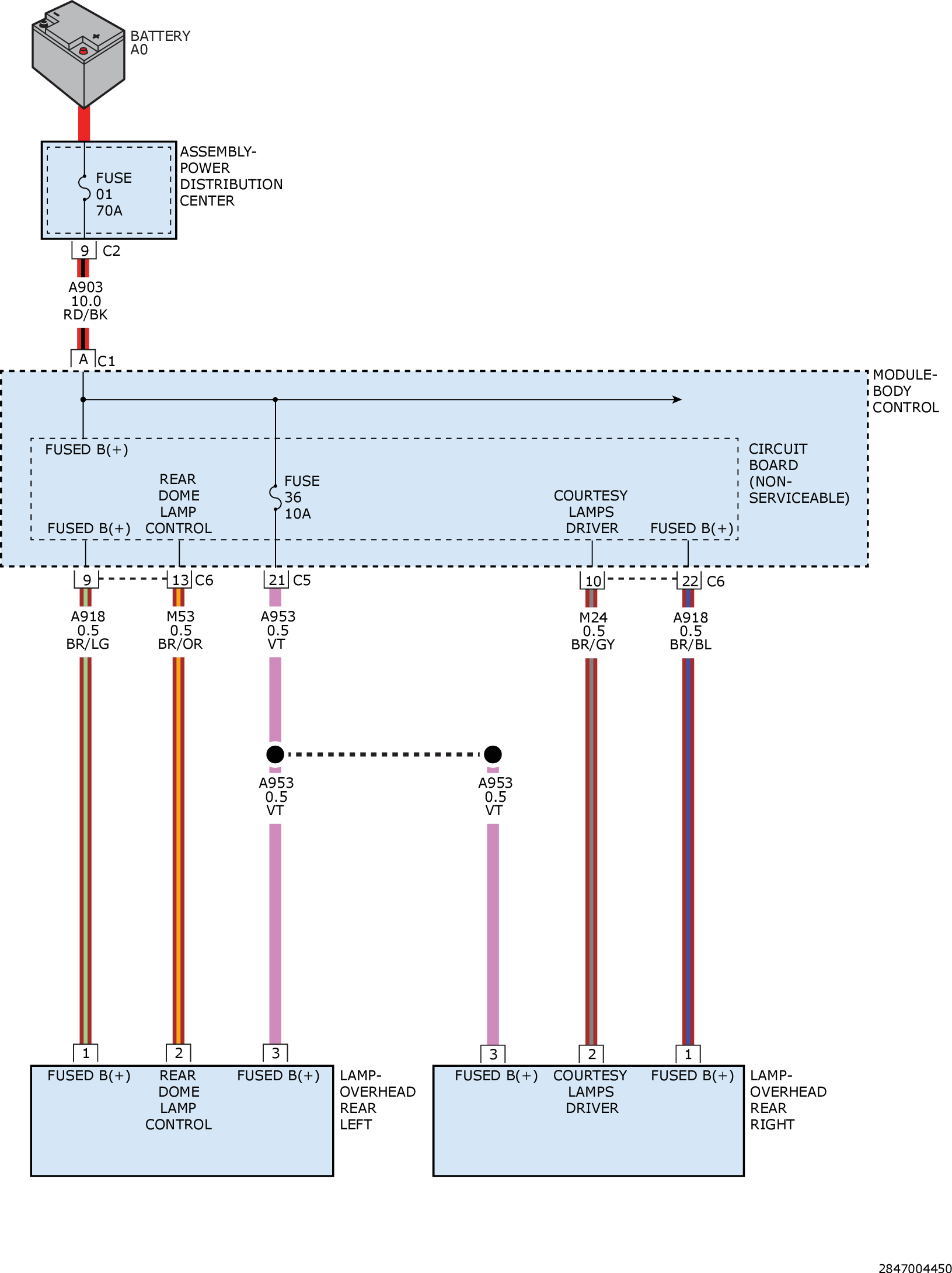

GC0161214Courtesy of CHRYSLER GROUP, LLC
