POWER Liftgate LATCH MANUAL OVERRIDE

WARNING: This page is about a different car, the 2018 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

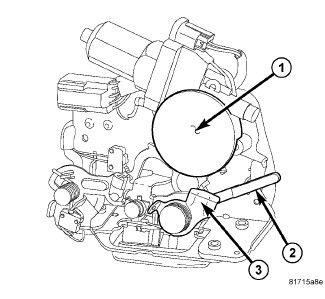

GC0104330Courtesy of CHRYSLER GROUP, LLC
NOTE:

If the power Liftgate latch (1) latch release function becomes inoperative, it may be released manually by operating the manual latch release lever (3). If the power Liftgate latch cinch release function becomes inoperative, it may be overridden by pushing downward on the manual cinch override lever (2).

  1. Remove the access cover from the center of the lower Liftgate trim panel.
  2. Reach around to the rearward face of the latch assembly to access and manually actuate the appropriate release lever for the current latch condition.
