DESCRIPTION

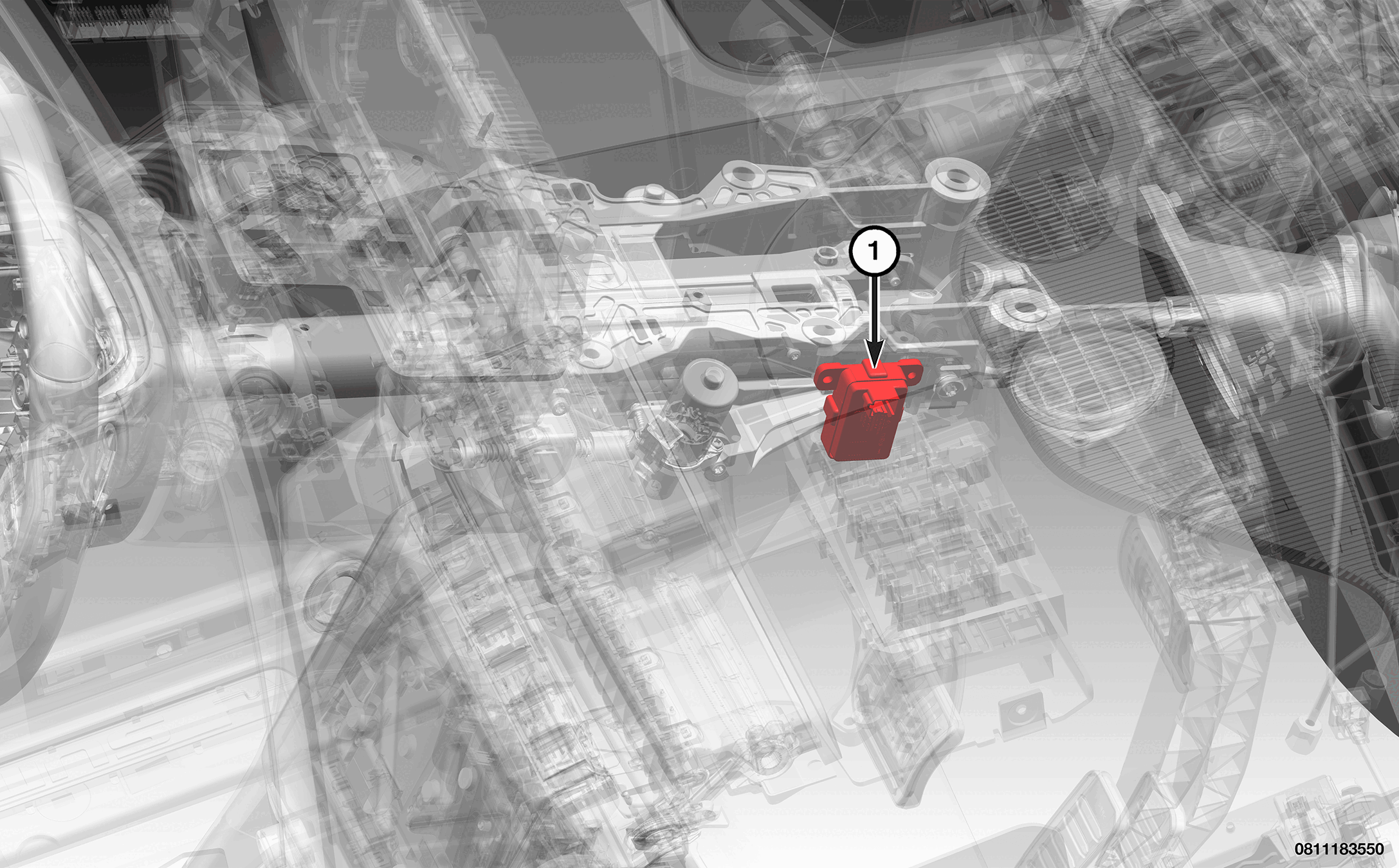

The Comfort Steering Wheel Surface Module (CSWSM) (1) is mounted the steering column within the dash assembly.

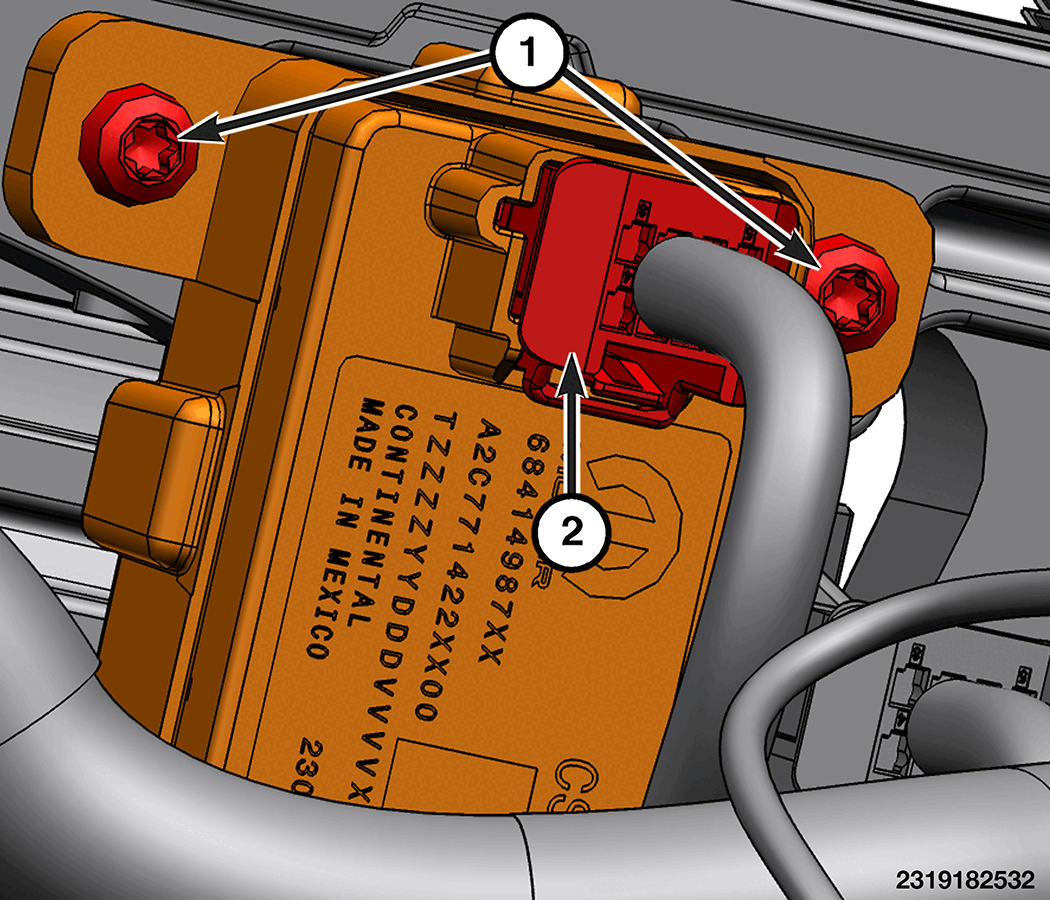

The CSWSM is mounted the steering column using two fasteners (1). The CSWSM is connected electronically to the vehicle via one wore harness connector (2).
OPERATION
The CSWSM is responsible for controlling the heating element in the steering wheel.
