Engine Block: FLEXPLATE: Installation
WARNING: This page is about a different variant/trim than selected.

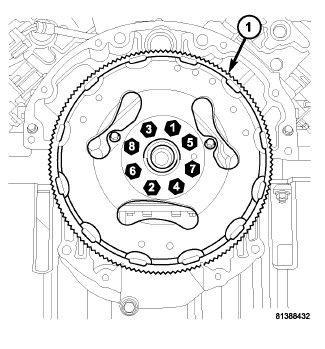

- Position the flexplate (1) onto the crankshaft and install the bolts finger tight.
- Using the sequence shown in illustration, tighten the flexplate retaining bolts to the proper torque specification. Refer to TECHNICAL SPECIFICATIONS .CAUTION:
Do not use an impact socket or a thick walled socket when removing or installing the flexplate retaining bolts, damage to the crankshaft, internal engine or the transmission may occur.
- Install the transmission. Refer to INSTALLATION .
