Module, Final Drive Control (FDCM): Removal

WARNING: This page is about a different car, the 2018 RAM 3500 HD and 2018 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

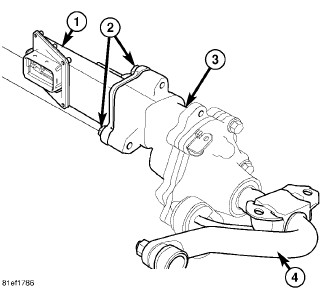

GC0107515Courtesy of CHRYSLER GROUP, LLC
WARNING:

The disconnecting stabilizer bar unit (3) is not serviced separately from the bar (4). Do not disassemble this unit from the stabilizer bar.

NOTE:

The Final Drive Control Module (FDCM) is integrated with the front stabilizer actuator.

  1. Raise and support the vehicle.
    NOTE:

    Before removing the connector from the actuator (1) clean the outside of the connector with a cleaner and compressed air, to remove any dirt or debris.

  2. Disconnect the electronic actuator electrical connector for the disconnecting stabilizer bar.
  3. Remove the 3 actuator bolts (2) then remove the actuator (1).
