No Response From DTCM (Drive Train Control Module): Notes
WARNING: This page is about a different car, the 2016 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article
.

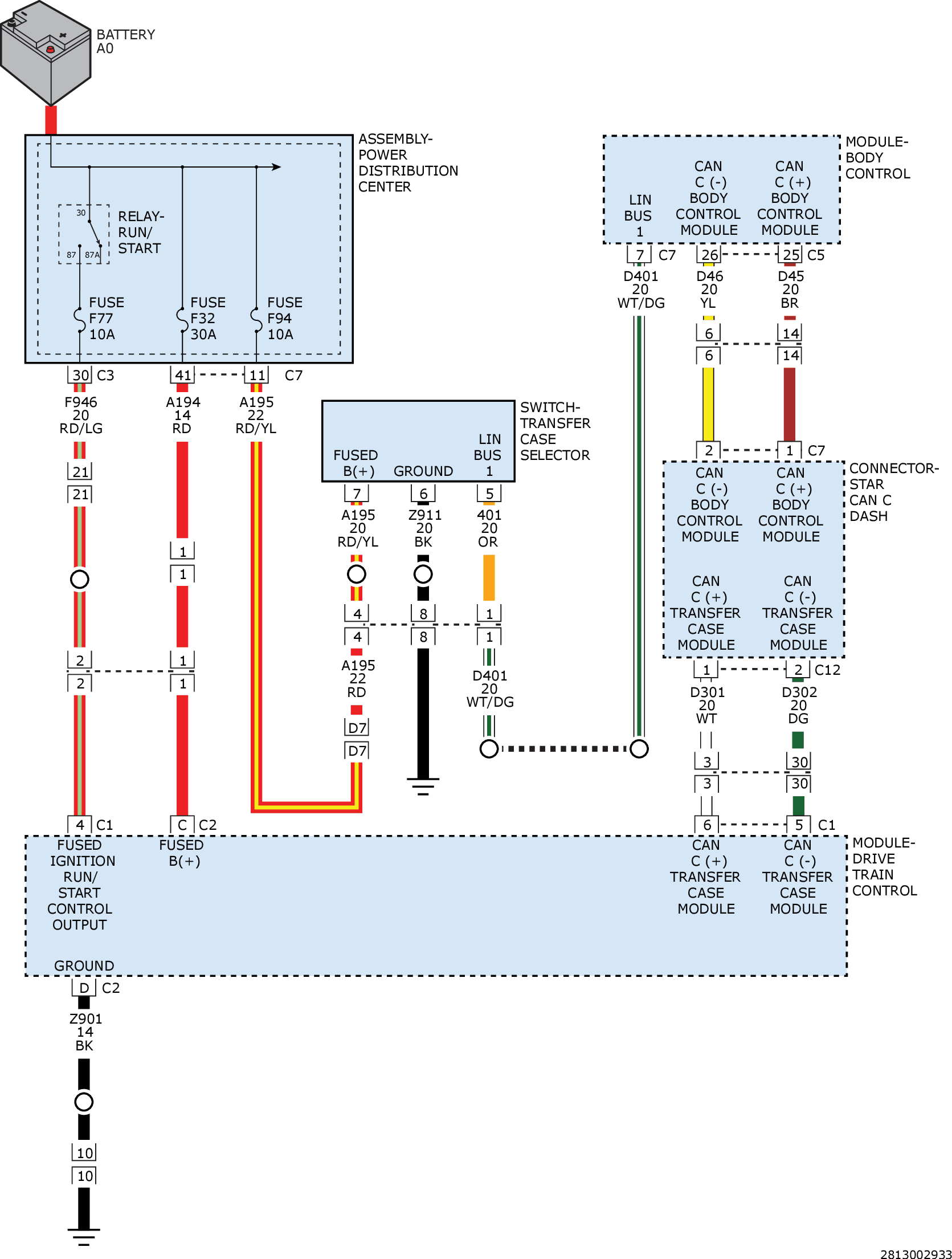

Fig 1: Drive Train Control Module Power, Ground & CAN C Circuit Diagram
