Down Stream 1.6L Diesel: Installation

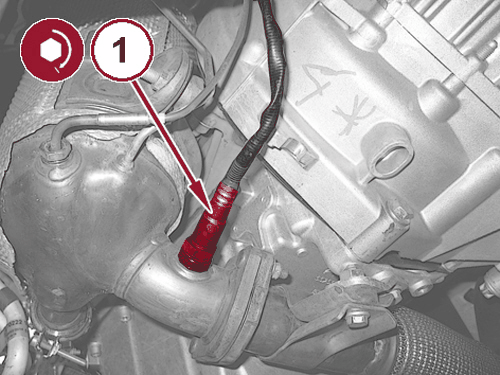

GC0176589Courtesy of CHRYSLER GROUP, LLC
  1. Install the lower oxygen sensor and tighten to the proper specification.
  2. Connect the lower oxygen sensor wire harness connector and engage the wiring in the retaining clips.
  3. Install the belly pan. Refer to BELLY PAN, REMOVAL AND INSTALLATION .
  4. Connect and isolate the negative battery cable.
