Exhaust Gas RECIRCULATION, Diesel
>>
Sensor, EGR Temperature
>>
Description
>>
Description 2.2L
Description 2.2L
Courtesy of CHRYSLER GROUP, LLC

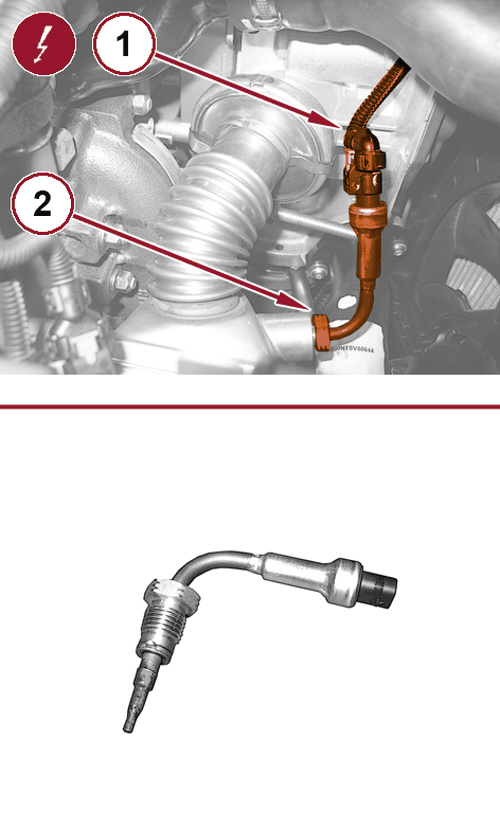

The EGR Temperature Sensor (2) is located on the low pressure EGR cooler.
Courtesy of CHRYSLER GROUP, LLC
