P0645-A/C Control Circuit/Open: Notes

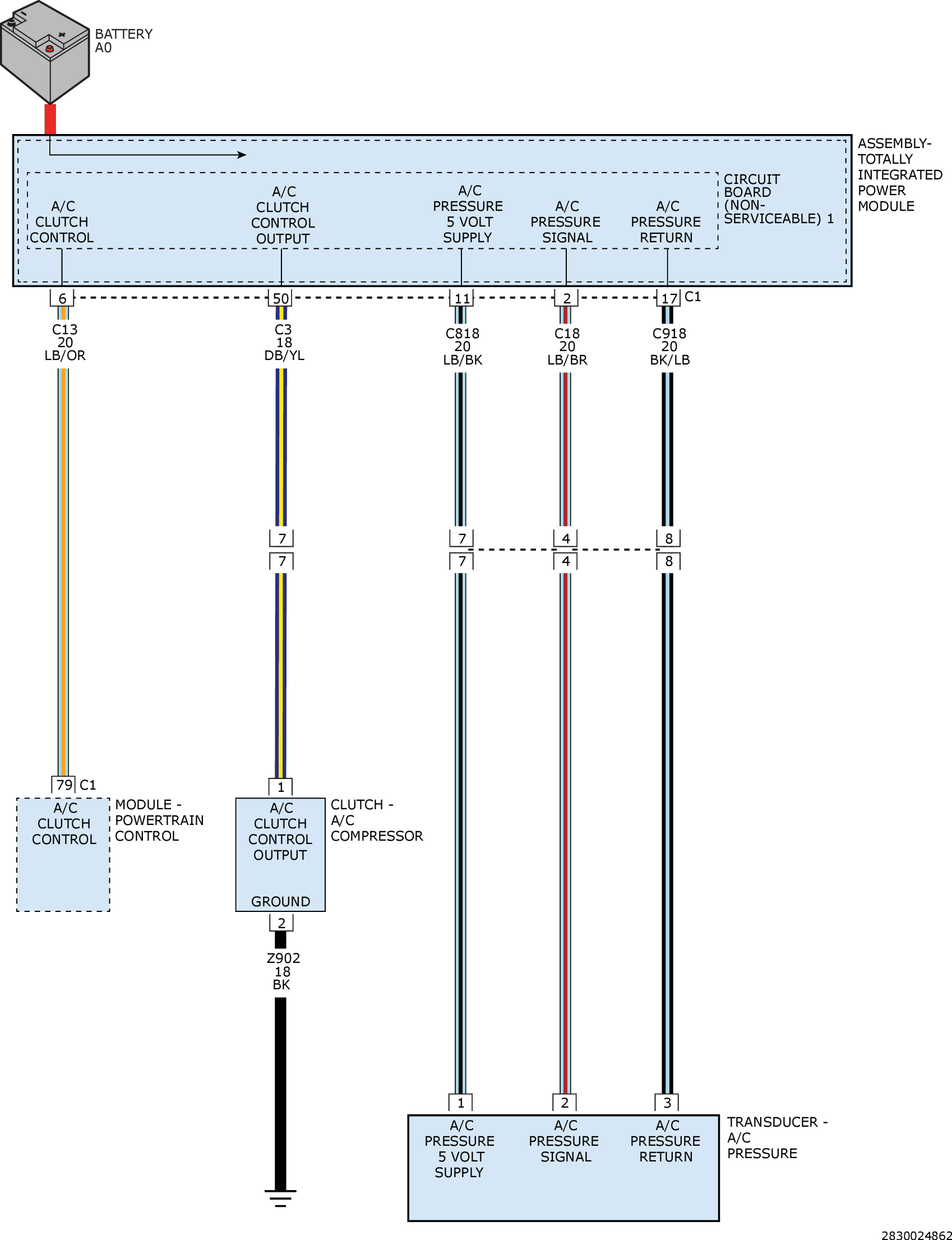

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article .

GC0161070

Courtesy of CHRYSLER GROUP, LLC
