Nag1 Automatic Transmission (Service Information): Removal

  1. Disconnect the negative battery cable.
  2. Remove transmission fill tube bolt from the valve cover.
  3. Raise and support the vehicle
  4. Remove any necessary skid plates. Refer to PLATE, SKID, TRANSMISSION, REMOVAL .
  5. Remove the catalytic convertor. Refer to CONVERTER, CATALYTIC, REMOVAL .
  6. Mark propeller shaft and axle companion flanges for assembly alignment.
  7. Remove the rear propeller shaft. Refer to SHAFT, DRIVE, REAR, REMOVAL .
  8. Remove the front propeller shaft, if necessary. Refer to SHAFT, DRIVE, REAR, REMOVAL .
  9. Support the transmission.

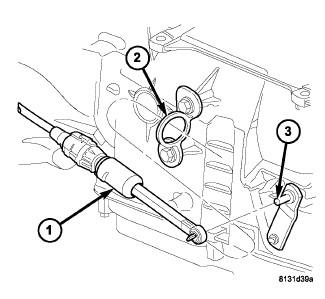

    GC0086145Courtesy of CHRYSLER GROUP, LLC
  10. Disconnect the gearshift cable (1) from the transmission manual valve lever (3).
  11. Loosen the bolts holding the shift cable retaining strap (2) to the transmission.
  12. Remove the shift cable (1) from the transmission.

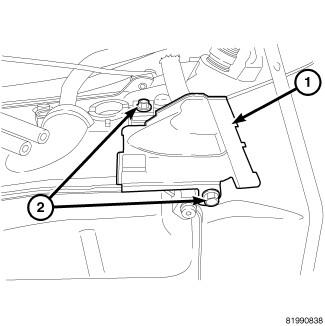

    GC0086148Courtesy of CHRYSLER GROUP, LLC
  13. Remove the heat shield (1) from the 13-pin connector.

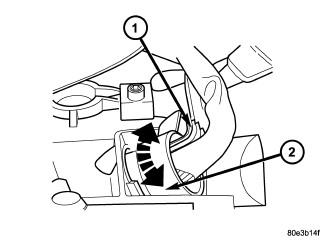

    GC0086146Courtesy of CHRYSLER GROUP, LLC
  14. Disconnect 13-pin plug connector (1). Turn bayonet lock of the adapter plug (2) counterclockwise.
  15. Remove the 13-pin connector (1) from the transmission.
  16. Remove the starter motor from the transmission starter pocket and position aside. Refer to STARTER, REMOVAL .
    GC0138700Courtesy of CHRYSLER GROUP, LLC
  17. With socket wrench on dampener bolt rotate crankshaft in clockwise direction until converter bolts are accessible. Then remove bolts (1) one at a time through the access hole.
  18. Remove the bolt from the transmission filler tube and position the tube aside.
  19. Disconnect the transmission vent hose from the transmission.
  20. Remove transfer case, if equipped.
  21. Support rear of engine with safety stand or jack.
  22. Remove the transmission crossmember. Refer to CROSSMEMBER, TRANSMISSION, REMOVAL .
    GC0138701Courtesy of CHRYSLER GROUP, LLC
  23. Disconnect transmission fluid cooler lines (1) at transmission fittings and discard clips.
  24. Remove the lower bolts holding the transmission and engine.
    GC0138703Courtesy of CHRYSLER GROUP, LLC
  25. Remove all remaining converter housing bolts (2).
  26. Carefully work transmission and torque converter assembly rearward off engine block dowels.
  27. Hold torque converter in place during transmission removal.
  28. Lower transmission and remove assembly from under the vehicle.
  29. To remove torque converter, carefully slide torque converter out of the transmission.
