3.0L Diesel

WARNING: This page is about a different car, the 2017 RAM ProMaster 3500, 2017 RAM ProMaster 2500, and 2017 RAM ProMaster 1500. However, it is still accessible from the selected car via links, so may be relevant.
GC0161770Courtesy of CHRYSLER GROUP, LLC

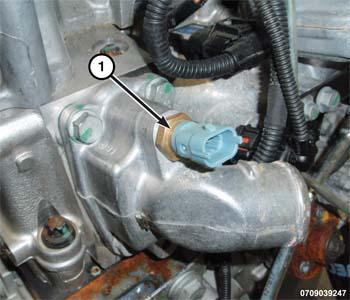

  1. Install the coolant temperature sensor (1) and tighten to 30 N.m (22 ft. lbs.).
    GC0161901Courtesy of CHRYSLER GROUP, LLC

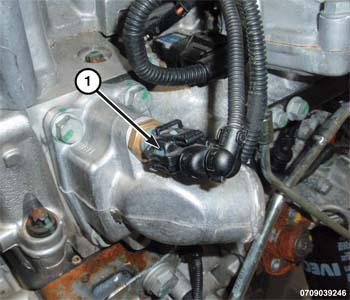

  2. Connect the coolant temperature sensor wire harness connector (1).
    GC0161813Courtesy of CHRYSLER GROUP, LLC
  3. Install the Charge Air Cooler (CAC) hose (2) to the EGR air flow control valve elbow and securely tighten the clamp (1).
  4. Install the radiator crossmember. Refer to CROSSMEMBER, RADIATOR, INSTALLATION .
  5. Fill the cooling system. Refer to STANDARD PROCEDURE .
  6. Connect the negative battery cable.
