Section 385 (Navigation/Telecommunication (Service Information)): Microphone: Installation: Installation
WARNING: This page is about a different car, the 2016 Jeep Wrangler and 2015 Jeep Wrangler. However, it is still accessible from the selected car via links, so may be relevant.

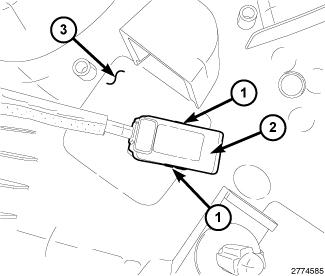

- Align and insert the microphone (2) with the receptacle on the back of the driver side upper A-pillar trim (3) until the latch tabs (1) on each side of the microphone snap into place.

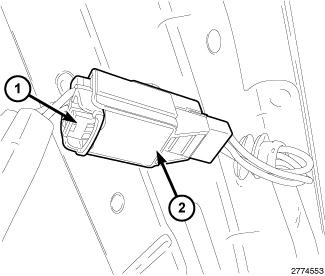

- Reconnect the microphone pigtail wire harness connector (1) to the instrument panel wire harness connector (2).
- Reinstall the upper trim onto the driver side A-pillar. Refer to PANEL, A-PILLAR TRIM, INSTALLATION .
