Automatic Transmission (Service Information): Cover: Installation

Courtesy of CHRYSLER GROUP, LLC

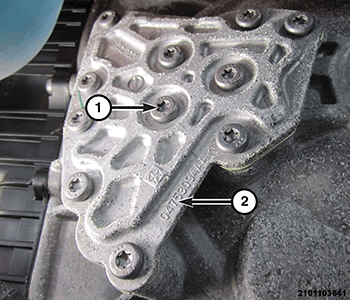

1. Install the cover plate (2) with a NEW gasket.
2. Install the cover plate bolts and tighten to the proper torque specification. Refer to TECHNICAL SPECIFICATIONS .
3. Check the transmission fluid level. Refer to FLUID AND FILTER, STANDARD PROCEDURE .
4. Install the left inner splash shield. Refer to SHIELD, SPLASH, REAR WHEELHOUSE, INSTALLATION .
5. Install the left front wheel and tire assembly. Refer to INSTALLATION .
