Module-Powertrain Control C2

Harness-Family: Engine_Diesel

Color:

Gender: MALE

Part Number: 1 928 405 735_1 928 405 725

Part Description: Not Available

Connector No: D3837B

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: ~~

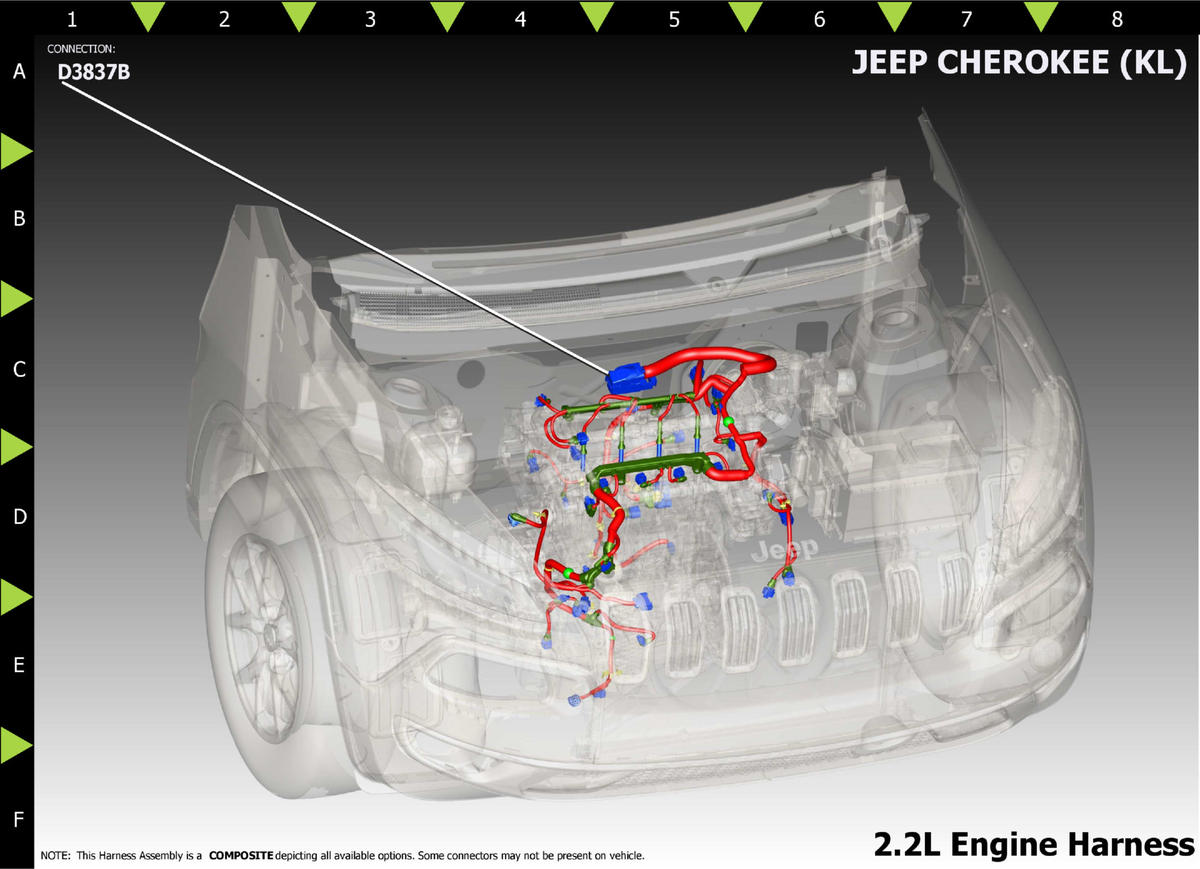

Fig 1: Module-Powertrain Control C2 Component Location
GCWD1219542Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 K13 BR/WT 14 INJECTOR CONTROL 3 2.0L EU5
2 K12 GY/RD 14 INJECTOR CONTROL 2 2.0L EU5
3 K635 OR/LG 18 TURBOCHARGER ACTUATOR (+) 2.0L EU6
5 K945 WT/BK 18 ACTUATOR SWIRL END POSITION RTN 2.0L EU5
6 K366 OR/BK 18 FUEL QUANTITY SOLENOID 12 VOLT SUPPLY 2.0L 2.2L EU6
6 K351 VT/WT 20 5V ACTUATOR SWIRL END POSITION 2.0L EU5
7 K551 WT/DB 20 5 VOLT SUPPLY 2.0L EU5
7 K365 YE/BK 18 FUEL QUANTITY CONTROL N/A
8 K314 YE/RD 18 TTVA MOTOR (+) N/A
8 K928 YE/RD 18 EGR AIRFLOW CONTROL VALVE ACTUATOR (+) N/A
9 K315 BK/LG 18 TTVA MOTOR (-) 2.0L EU6
9 K927 BK/RD 18 EGR AIRFLOW CONTROL VALVE ACTUATOR (-) 2.2L EU6
10 K668 WT/OR 20 5 VOLT SUPPLY 2.0L EU5
11 K350 RD/LG 20 FUEL PRESSURE 5 VOLT SUPPLY 2.0L EU5
14 K44 GY 20 CMP SENSOR SIGNAL 1/1 2.0L EU5
15 K365 YE/BK 18 FUEL QUANTITY CONTROL N/A
16 K11 DB/RD 14 INJECTOR CONTROL 1 2.0L EU5
16 K313 RD 20 EGR AIR FLOW CONTROL POSITION SUPPLY 2.2L EU6
17 K14 RD/YE 14 INJECTOR CONTROL 4 N/A
17 K934 WT/YE 20 EGR SENSOR GROUND N/A
20 K24 GY/BK 18 CKP SIGNAL 2.0L 2.2L EU6
21 K22 OR 20 TP 1 SIGNAL 2.0L EU5
21 K925 WT/YE 18 CKP GROUND N/A
22 K12 GY/RD 14 INJECTOR CONTROL 2 2.0L 2.2L EU6
22 K922 WT/BK 18 TP SENSOR RETURN 2.0L EU5
24 K13 BR/WT 14 INJECTOR CONTROL 3 2.0L 2.2L EU6
24 K934 VT 20 EGR SENSOR GROUND 2.0L EU5
25 K690 BR/VT 20 COMBO PRESS AND TEMP SNSR RTN 2.0L EU5
25 K636 DB/BK 18 TURBOCHARGER ACTUATOR (-) 2.2L EU6
25 K639 YE/GY 18 BOOST PRESSURE SERVO RETURN N/A
26 K179 YE/GY 20 FUEL PRESSURE SIGNAL 2 N/A
27 K180 BR/RD 20 SENSOR RETURN 2.2L EU6
28 K945 GY/BR 20 ACTUATOR SWIRL END POSITION RTN 2.2L EU6
29 K351 LG/BK 20 5V ACTUATOR SWIRL END POSITION 2.0L 2.2L EU6
30 G60 GY 20 OIL PRESS SENSE/SW SIG 2 2.0L 2.2L EU6
31 K666 OR 20 SENSOR RETURN 2.2L EU6
32 K691 BK/LG 20 EGR COOLER TEMP SIGNAL 2.2L EU6
34 K376 BR 20 CYLINDER HEAD TEMP SIGNAL 2.2L EU6
35 K857 VT/YE 20 5-VOLT SUPPLY N/A
36 K657 WT 20 INTAKE AIR TEMP 3 SIGNAL 2.2L EU6
37 K552 LG/DB 20 SENSOR GROUND 2.0L EU5
38 K668 WT/OR 20 5 VOLT SUPPLY 2.0L 2.2L EU6
39 K551 BR/YE 20 5 VOLT SUPPLY N/A
40 K37 WT/BK 20 BOOST PRESSURE SIGNAL 2.0L EU5
40 K685 DB/WT 20 EGR POSITION SENSOR SIGNAL 2 2.2L EU6
42 K350 RD/LG 20 FUEL PRESSURE 5 VOLT SUPPLY 2.0L 2.2L EU6
44 K925 WT/YE 18 CKP GROUND N/A
46 K79 RD/VT 18 O2 1/1 HEATER CONTROL 2.0L EU6
50 G6 GY/DB 20 OIL PRESSURE SIGNAL 2.0L 2.2L EU6
51 G60 DB/LG 20 OIL PRESS SENSE/SW SIG 2 2.0L EU5
52 K44 GY 20 CMP SENSOR SIGNAL 1/1 2.0L 2.2L EU6
53 K553 GY/BK 20 TURBO POSITION SIGNAL 2.0L EU5
54 G6 GY/DB 20 OIL PRESSURE SIGNAL 2.0L EU5
55 K48 WT/LG 20 AIR TEMP SENSOR SIGNAL 2.0L EU5
55 K900 BK/RD 20 SENSOR GROUND 2.0L EU6
56 K185 LG 20 EXHAUST TEMPERATURE SENSOR 1 SIGNAL 2.0L EU6
56 K372 LG 20 EXHAUST TEMPERATURE 1/3 SENSOR SIGNAL 2.2L EU6
57 K2 DB/RD 20 ECT SIGNAL 2.0L EU5
58 K200 GY/LG 20 COOLANT TEMPERATURE SENSOR RETURN 2.0L EU5
59 K24 GY/BK 18 CKP SIGNAL 2.0L EU5
60 K366 OR/BK 18 FUEL QUANTITY SOLENOID 12 VOLT SUPPLY 2.0L EU5
61 K48 WT/LG 20 AIR TEMP SENSOR SIGNAL N/A
64 K11 DB/RD 14 INJECTOR CONTROL 1 N/A
66 K14 RD/YE 14 INJECTOR CONTROL 4 N/A
67 K677 GY/RD 18 HP EGR VALVE ACTUATOR (+) N/A
74 K382 OR/RD 18 SENSOR RETURN N/A
76 K552 BK/LB 20 SENSOR GROUND 2.0L EU6
77 K553 GY/WT 20 TURBO POSITION SIGNAL N/A
78 F859 VT/RD 20 HP EGR VALVE ACTUATOR (-) N/A
79 K662 DB 20 5-VOLT SUPPLY 2.2L EU6
83 K902 RD/BK 20 O2 RETURN (UPSTREAM) N/A
84 K41 LG/WT 20 O2 1/1 SIGNAL 2.2L EU6
88 K678 YE/LG 18 SENSOR RETURN N/A
90 G62 WT/RD 18 OIL PRESSURE SOL CONTROL 2.0L EU6
95 K690 BR/VT 20 COMBO PRESS AND TEMP SNSR RTN N/A
96 K37 WT/BK 20 BOOST PRESSURE SIGNAL 2.0L EU6
97 K921 WT/BK 20 SENSOR RETURN N/A
98 K22 YE/DB 20 TP 1 SIGNAL N/A
99 K200 GY/LG 20 COOLANT TEMPERATURE SENSOR RETURN 2.0L EU6
100 K2 DB/RD 20 ECT SIGNAL N/A
(1) Pins not listed are not used for this connector
