Module-Occupant Classification

Harness-Family: Seat_Cshn_Pass

Color: BLACK

Gender: FEMALE

Part Number: 31403-6110

Part Description: USCAR CONNECTOR -SINGLE ROW ASSY W/ CPA

Connector No: D3875A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: 6

Fig 1: Module-Occupant Classification Connector End View

Courtesy of CHRYSLER

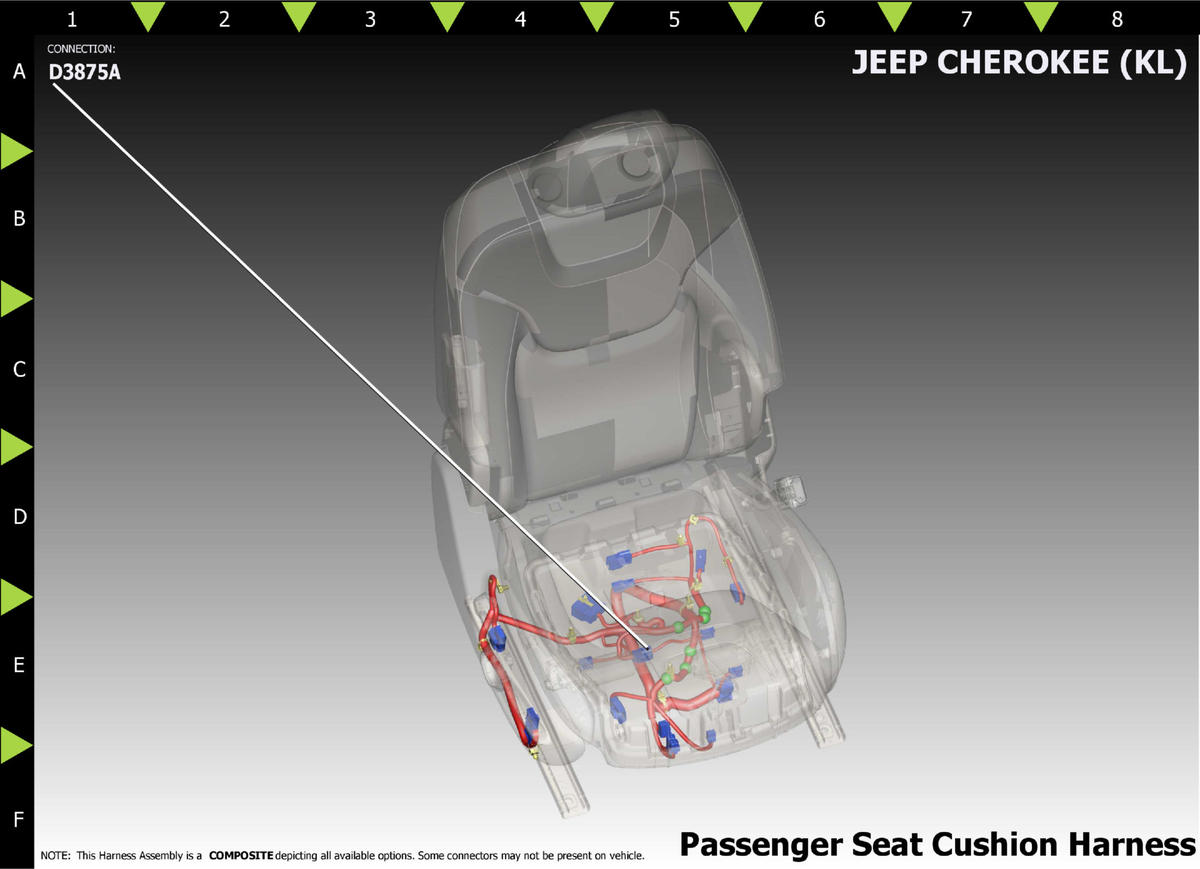

Fig 2: Module-Occupant Classification Component Location

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

F944

0.35

RUN/START RELAY OUTPUT

N/A

D13

YE/LB

0.35

CAN C (+)

N/A

D14

0.35

CAN C (-)

N/A

Z916

0.75

GROUND

N/A

⁽¹⁾	Pins not listed are not used for this connector
