P2123-Accelerator Pedal Position Sensor 1 Circuit High: Notes

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article .

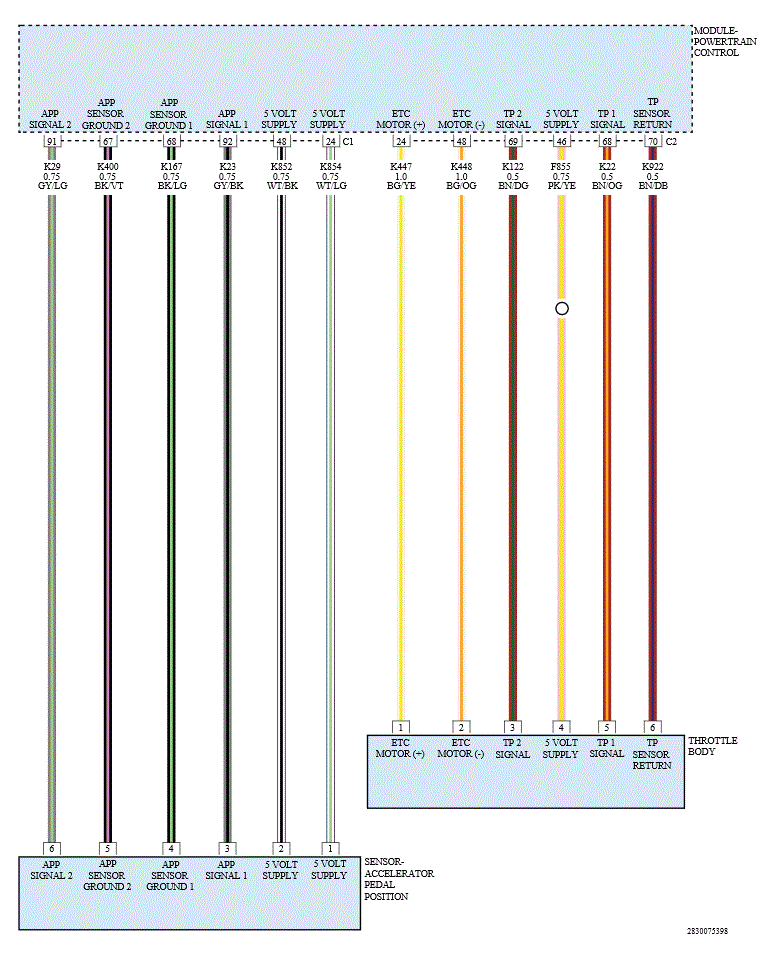

Fig 1: Throttle Position Sensor Circuit Diagram

Courtesy of CHRYSLER GROUP, LLC
