Sensor, Oil Temperature: Installation

WARNING: This page is about a different variant/trim than selected.

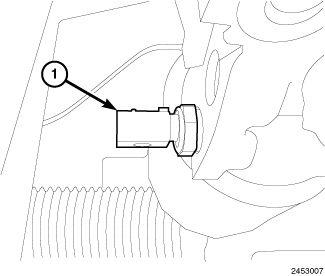

Fig 1: Oil Temperature Sensor

Courtesy of CHRYSLER GROUP, LLC

NOTE:

Apply Mopar® Thread Sealant with PTFE to the sensor threads before installing into the engine block.

Install the oil temperature sensor (1) and tighten to the proper (Torque Specifications).

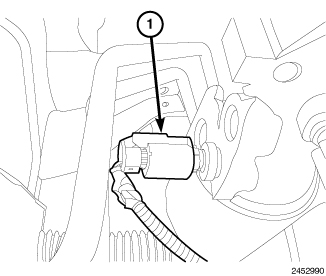

Fig 2: Oil Temperature Sensor Electrical Connector
Courtesy of CHRYSLER GROUP, LLC
Connect the oil temperature sensor wire harness connector (1).
Install the generator (Refer to 08 - Electrical/Charging/GENERATOR/Installation).
