SENSOR, Infrared Temperature: Removal: Removal
WARNING: This page is about a different car, the 2009 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Take the proper precautions to protect the front face of the overhead console from cosmetic damage while performing this procedure.
NOTE:

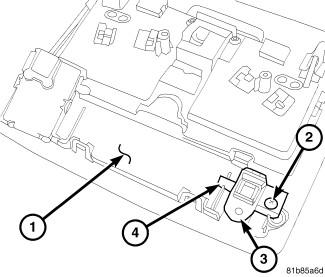

Typical overhead console shown.
- Disconnect and isolate the negative battery cable.
- Remove the overhead console (1) from the headliner and place it on a workbench. Refer to Electrical - Message Systems/Overhead Console - Removal .
- Remove the screw (2) that secures the infrared sensor (3) to the back of the overhead console and remove the sensor.
