Sensor, Ambient Temperature: Installation: Installation

WARNING: This page is about a different car, the 2012 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

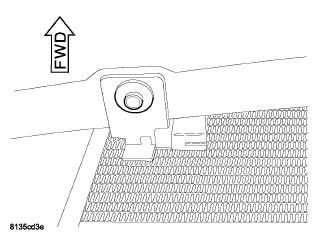

Fig 1: Ambient Temperature Sensor Fastener
GC0084029Courtesy of CHRYSLER GROUP, LLC
  1. Position the ambient temperature sensor in the vehicle.
  2. Install the fastener that secures the ambient temperature sensor to the radiator support.

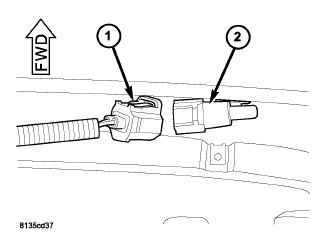

    Fig 2: Ambient Temperature Sensor Connector
    GC0084030Courtesy of CHRYSLER GROUP, LLC
  3. Connect the wire harness connector (1) to the ambient temperature sensor (2).
  4. Install the grille. Refer to GRILLE, RADIATOR, INSTALLATION .
  5. Connect the battery negative cable.
