Gear Shift Cable Adjustment

  1. Set the parking brake.
  2. Remove the air cleaner body. For 2.0L, refer to BODY, AIR CLEANER, REMOVAL . For 2.4L, refer to BODY, AIR CLEANER, REMOVAL .

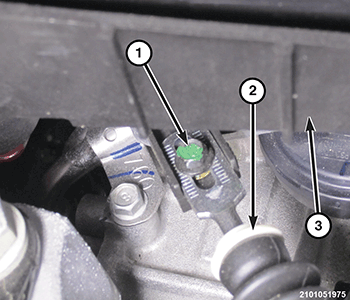

    Fig 1: Shifter Cable Adjustment Screw
    GC0170934Courtesy of CHRYSLER GROUP, LLC
  3. Loosen the shifter cable adjustment screw (1) located near the rear of the battery tray (3), but don't remove it.
  4. Place the transmission and the shifter lever into PARK. This can be verified for the transmission with the key in the "Run" position and viewing the PRND display. (Engine should not be running.)
  5. Tighten the shifter cable adjustment screw (1) to the proper specification. Refer to SPECIFICATIONS .
  6. Verify proper shifter operation.
