Section 22 (Audio System & Video System (Service Information)): Amplifier: Installation: Installation
WARNING: This page is about a different car, the 2009 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

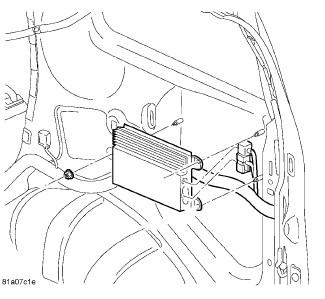

- Connect the electrical connectors and install the amplifier.
- Install the amplifier mounting fasteners.
- Install the rear quarter trim panel. Refer to Body/Interior/PANEL, Quarter Trim - Installation .
- Connect the battery negative cable.
