B1298-11-PTS Sensor 11-Circuit Short To Ground: Notes
WARNING: This page is about a different car, the 2012 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

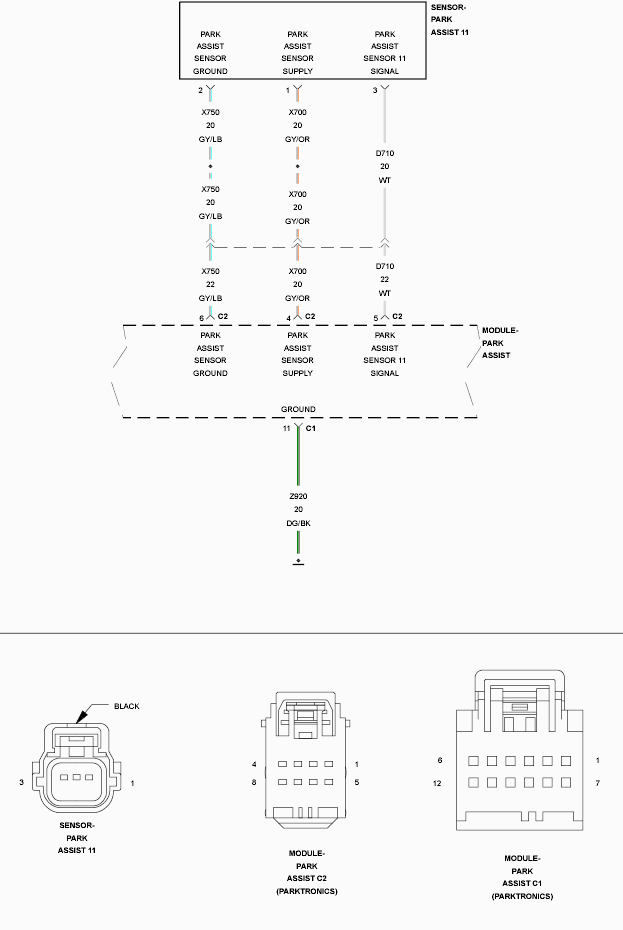

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article .
NOTE:
The numbering system for the park assist sensors allows for up to twelve sensors on the vehicle, six front and six rear. The sensors are numbered in a clockwise manner starting at the left front bumper. The left front sensor (if equipped with front park assist) is the number 1 sensor. The numbering continues in a clockwise direction around the vehicle. Since Chrysler Group vehicles use only four rear sensors, sensor numbers 7 and 12 are omitted, so the left rear sensor is the number 11 sensor.
