DTC P2067: -Fuel Level Sensor 2 Circuit Low: Notes

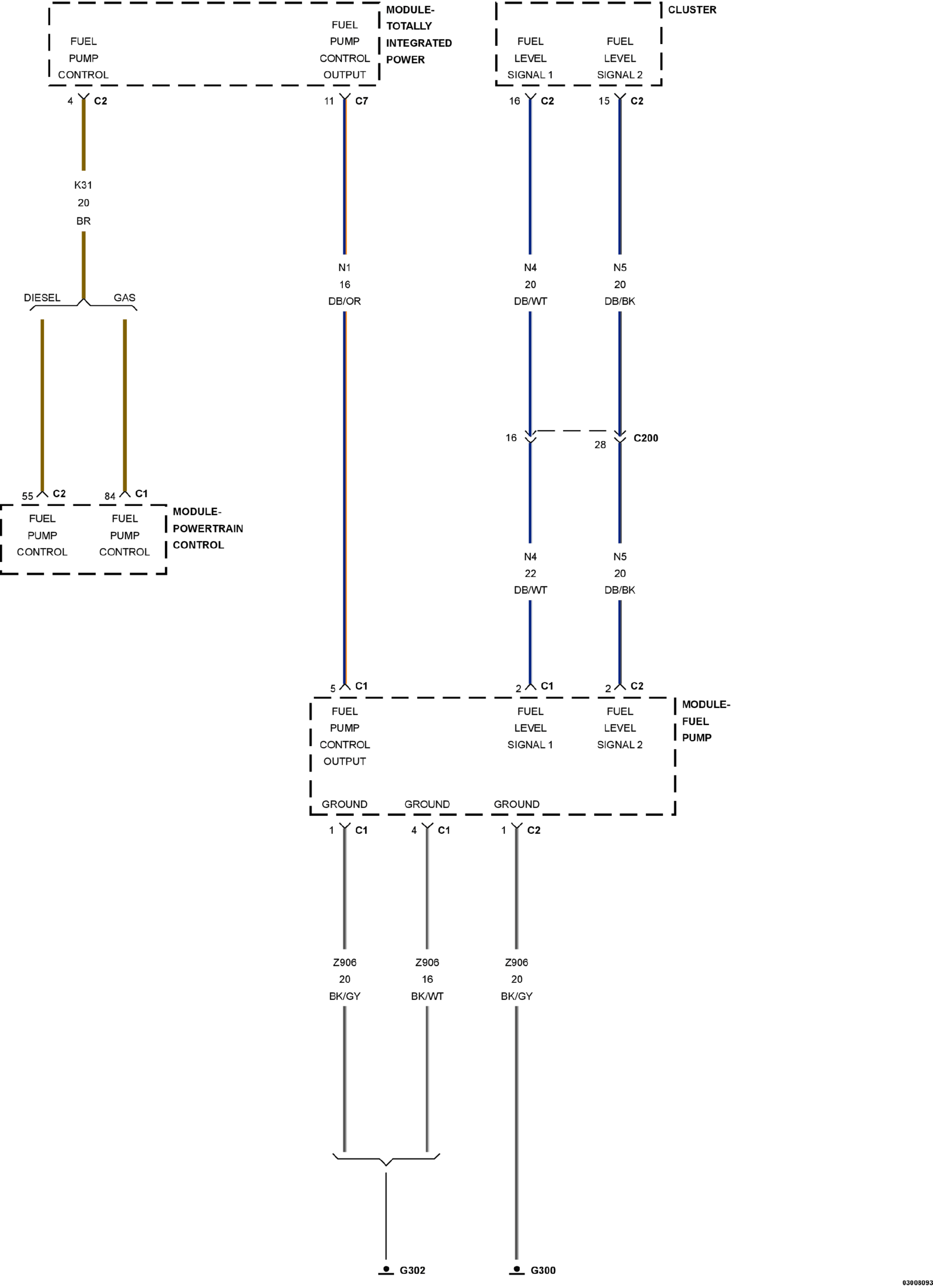

Fig 1: Fuel Pump Control Circuit 2 Wiring Diagram

Courtesy of CHRYSLER GROUP, LLC

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article  .
