Module, Park Assist: Installation: Installation

WARNING: This page is about a different car, the 2012 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

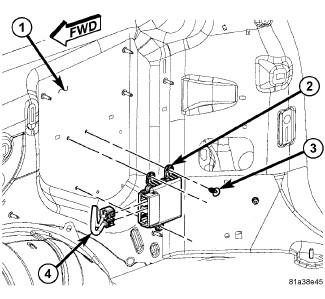

Fig 1: Removing/Installing Park Assist Module
GC0100783Courtesy of CHRYSLER GROUP, LLC
  1. Position the park assist module (2) to the right quarter inner panel (1) behind and above the right rear wheel house, forward of the D-pillar.
  2. Secure the module to the right quarter inner panel using three plastic push-in fasteners (3).
  3. Reconnect the two body wire harness connectors (4) to the module connector receptacles.
  4. Reinstall the trim onto the right quarter inner panel. Refer to PANEL, QUARTER TRIM, INSTALLATION .
  5. Reconnect the battery negative cable.
