P1D73-AGS Performance: Notes

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article  .

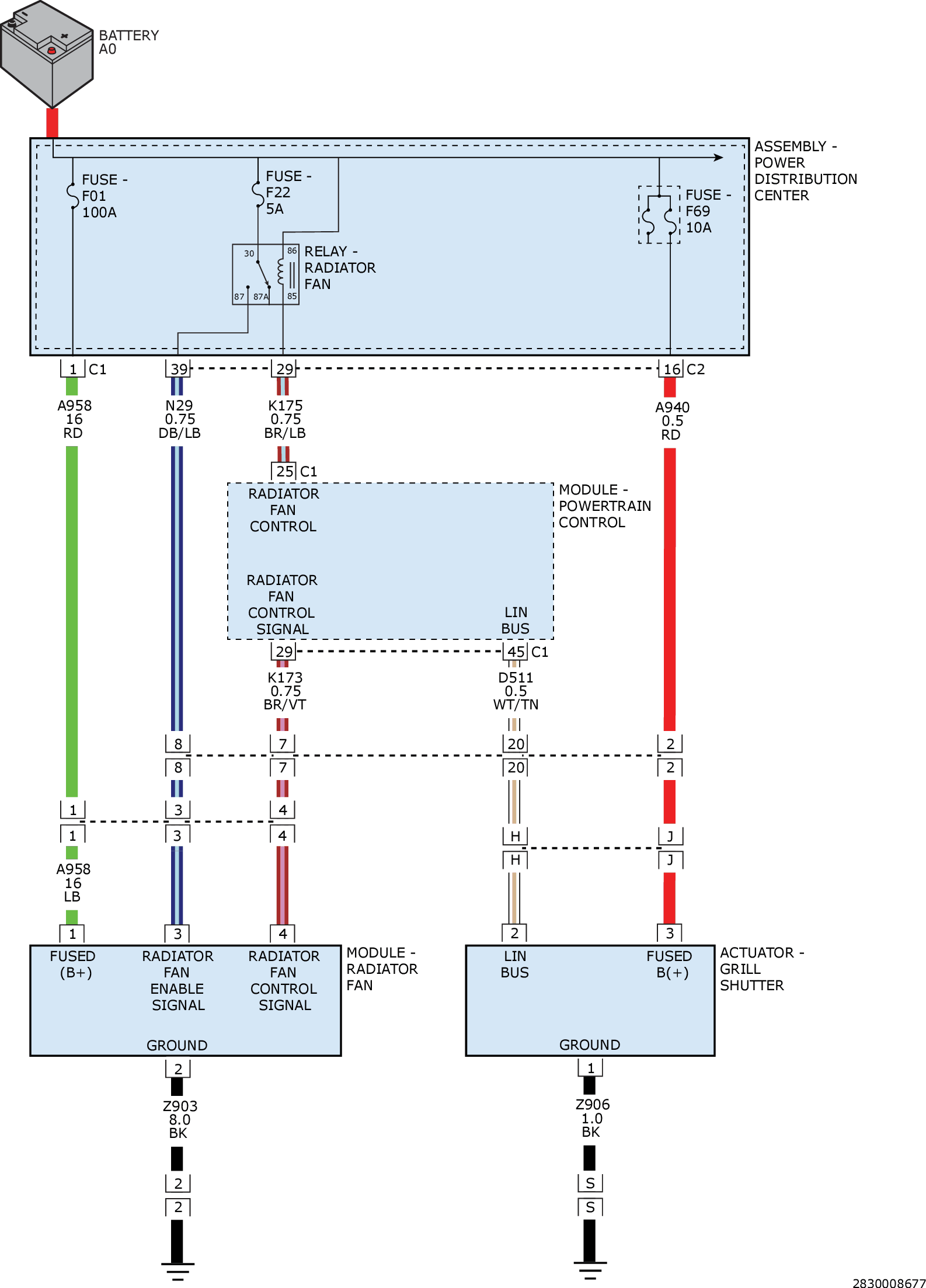

Fig 1: Radiator Fan Module & Grill Shutter Actuator Circuit Diagram

Courtesy of CHRYSLER GROUP, LLC
