Seal, Output Flange: Installation: Installation
WARNING: This page is about a different car, the 2014 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.

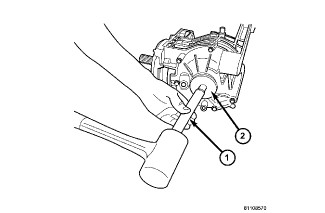

| 1 - HANDLE C-4171 |
| 2 - INSTALLER 8493 |
- Install output flange seal to differential housing using handle (special tool #C-4171, Driver Handle, Universal) (1) and installer (special tool #8493, Installer, Seal) (2).
- Install rear driveline module. Refer to INSTALLATION .
- Check differential assembly fluid level and adjust as required. Refer to FLUID, DIFFERENTIAL, STANDARD PROCEDURE .
