2.8L Diesel

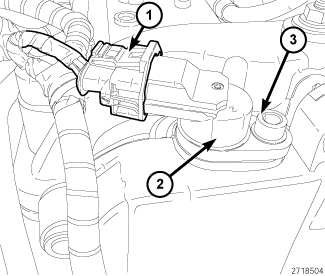

Fig 1: Camshaft Position Sensor Harness Connector, Sensor & Bolt
GC0102482Courtesy of CHRYSLER GROUP, LLC
  1. Install Camshaft Position (CMP) sensor (2). Tighten bolt (3) to 11 N.m (97 in. lbs.).
  2. Connect the CMP sensor wire harness connector (1).
  3. Connect the negative battery cable.
