Standard Procedure - Outer Tie Rod End Lubrication

NOTE:

View is typical.

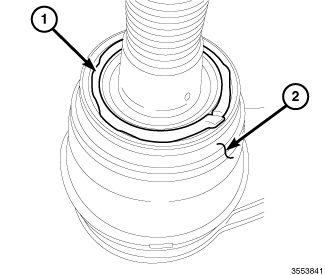

Fig 1: Locating Grease & Tie Rod End Boot

Courtesy of CHRYSLER GROUP, LLC

NOTE:

If a new tie rod end is to be installed, make sure the boot (2) is properly lubricated.

Any time the outer tie rod end is disconnected from the knuckle, before assembly, clean all old grease and debris from the boot with a clean cloth and apply outer tie rod grease P/N 68088623AA (1) to the boot (2) as shown.
