P1275-A/C Clutch Control Circuit 2 OVERCURRENT: Notes

WARNING: This page is about a different car, the 2012 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

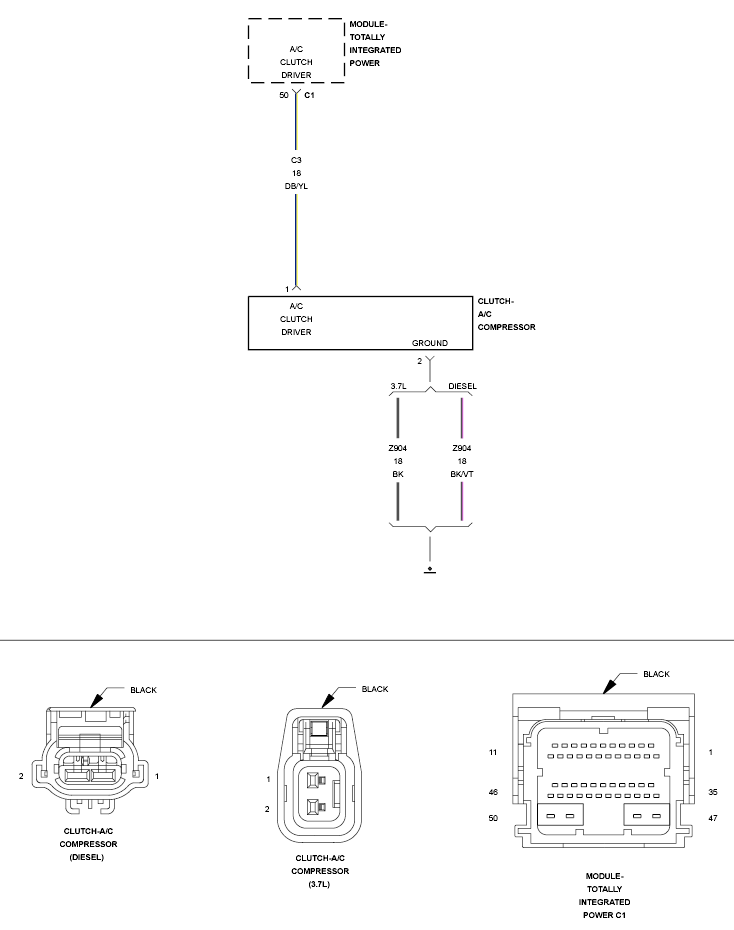

Fig 1: A/C Clutch Control Circuit 2 Wiring Diagram
GC0151752Courtesy of CHRYSLER GROUP, LLC

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article  .
