P0703-Brake Switch 2 Performance: Notes

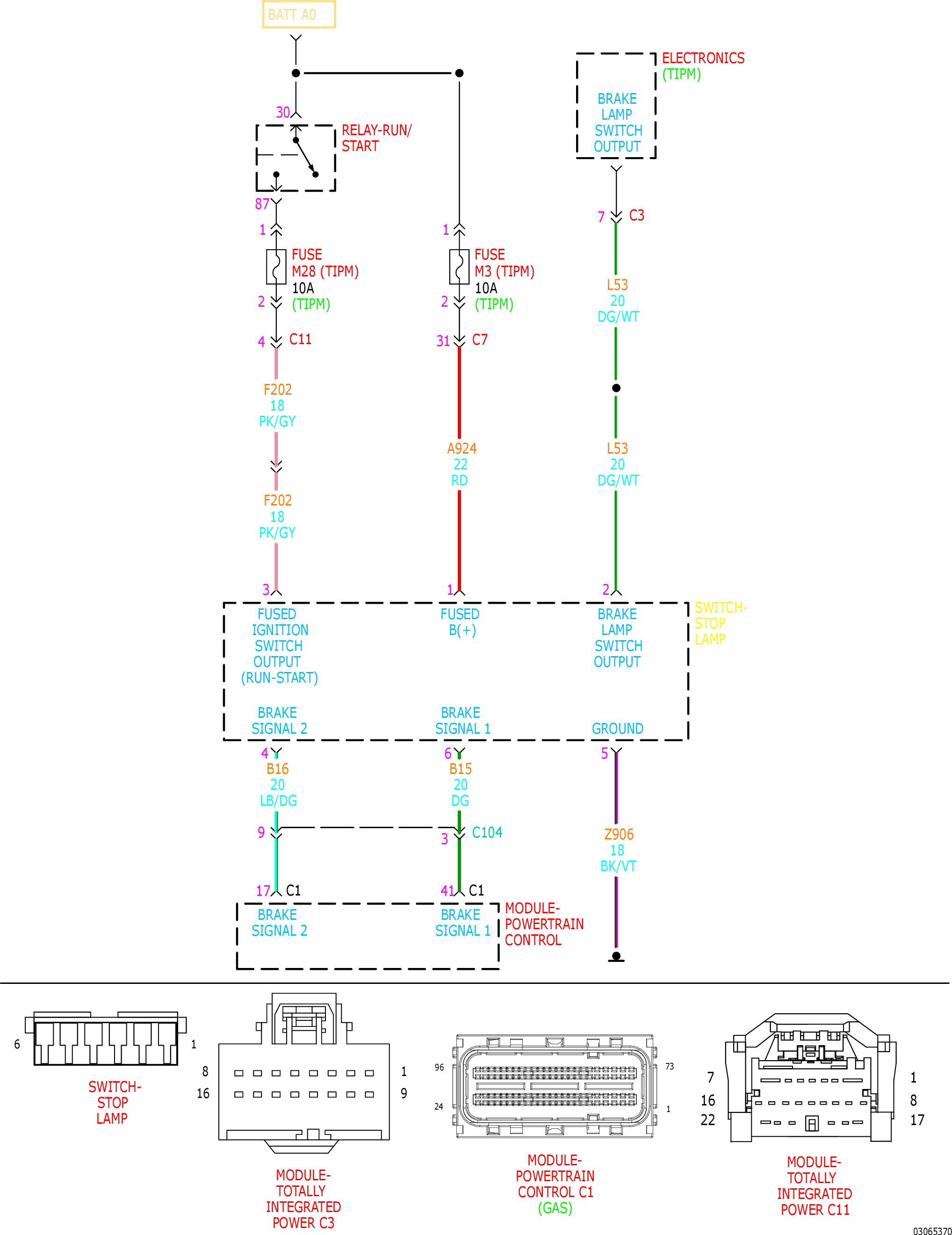

Fig 1: Brake Switch Circuit Diagram

GC0149783

Courtesy of CHRYSLER GROUP, LLC

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article .
