P0480-Cooling Fan 1 Control Circuit: Notes

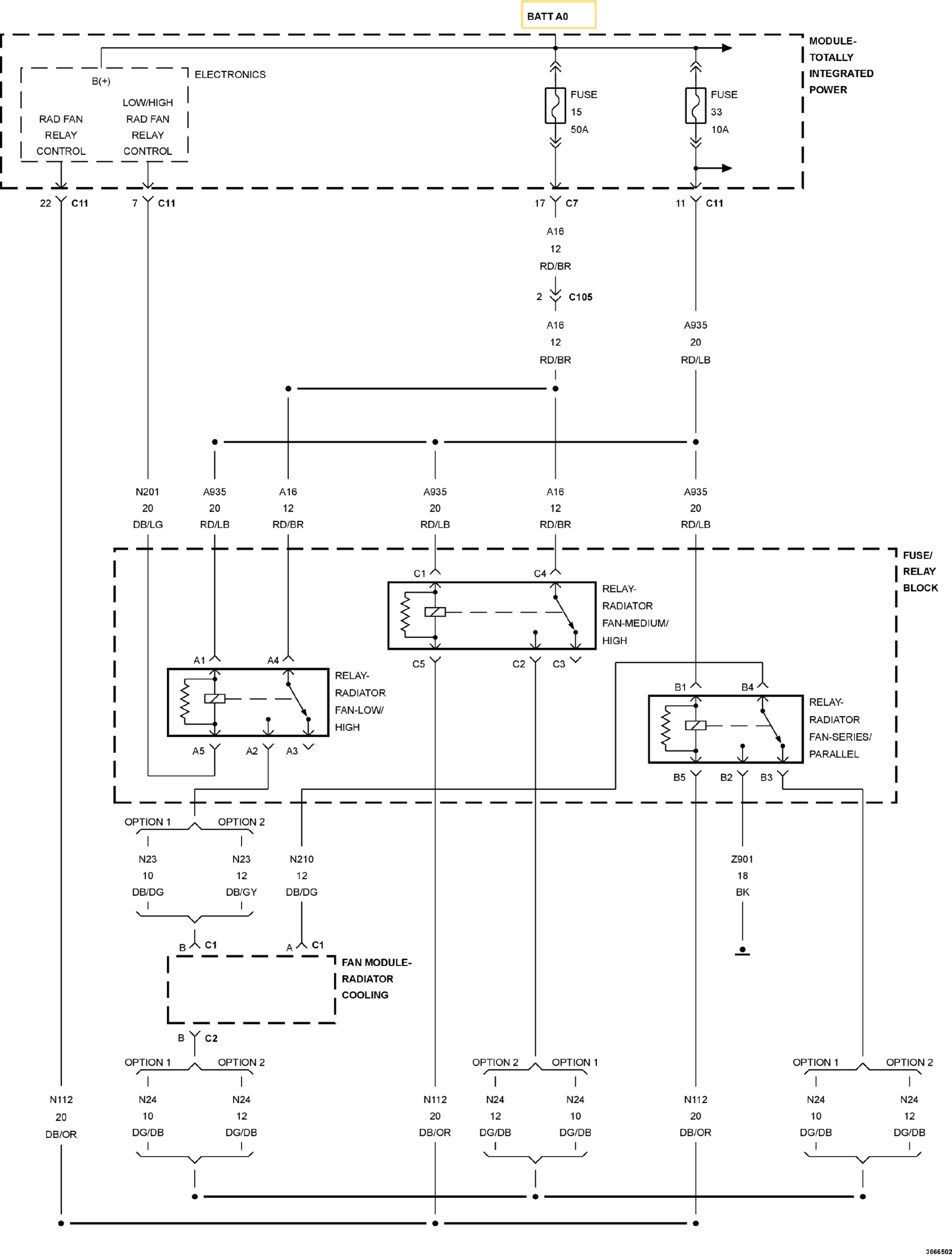

Fig 1: Cooling Fan Circuit Diagram

GC0149789

Courtesy of CHRYSLER GROUP, LLC

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article .
