U0126-Lost Communication With Steering Angle Sensor: Notes

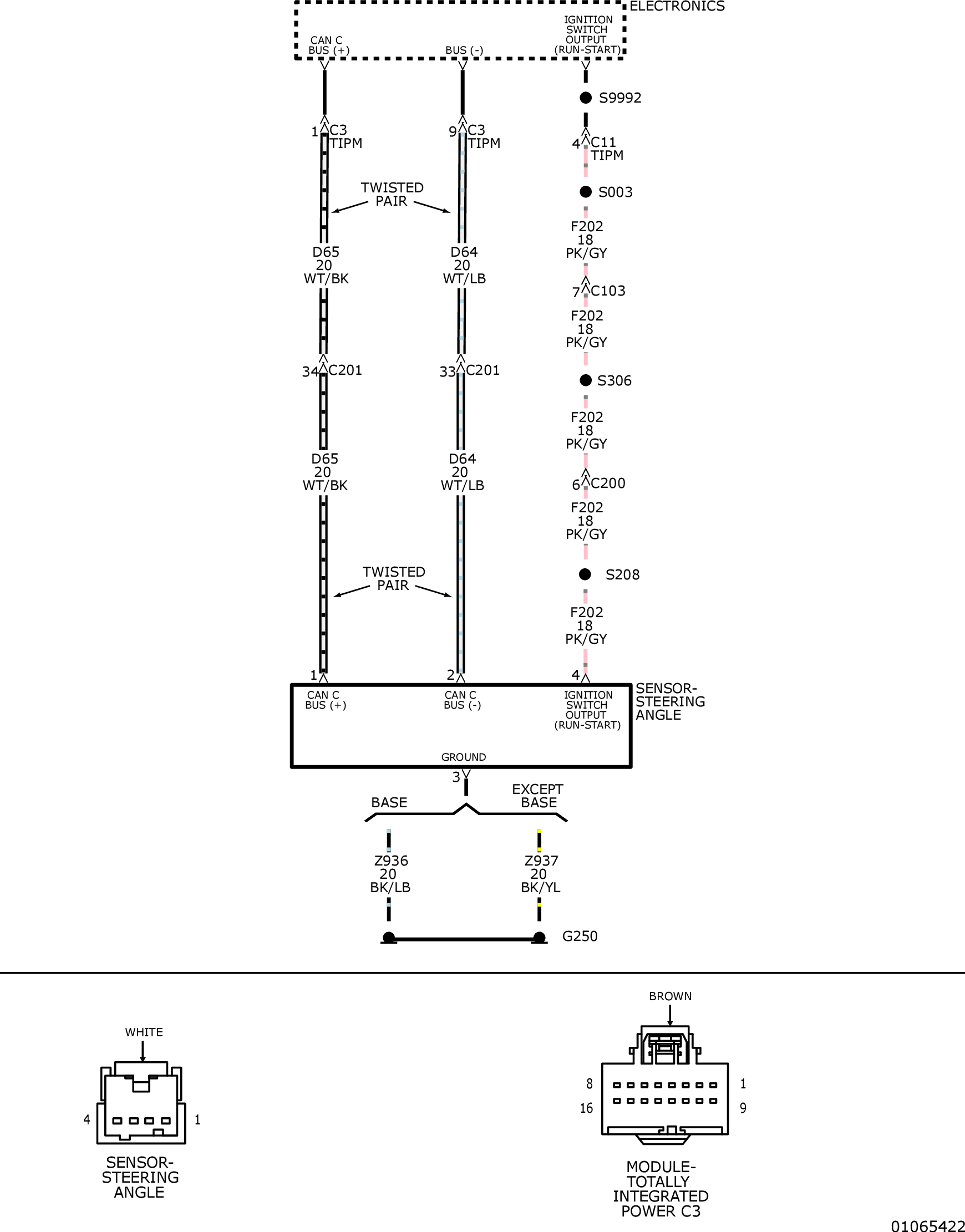

Fig 1: Steering Angle Sensor Circuit Schematic

Courtesy of CHRYSLER GROUP, LLC

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article  .
