Track, Seat: Installation: Installation

NOTE:

Take the proper precautions to protect the seat from cosmetic damage while performing this procedure.

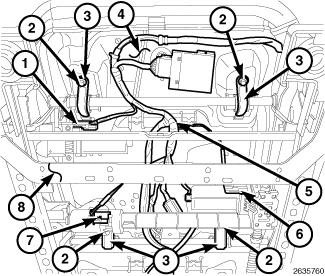

Fig 1: Identifying Harness Connectors, Bolts, Seat Cushion Pan Brackets, Seat Cushion Pan, Wire Harness & Power Seat Adjuster Assembly
GC0137816Courtesy of CHRYSLER GROUP, LLC
  1. Transfer any parts onto power seat adjuster assembly (8) as necessary.
  2. Install the seat back and seat cushion side shields. Refer to SEAT BACK, FRONT, INSTALLATION and SEAT BACK, REAR, INSTALLATION .
  3. Position the seat cushion and pan (4) onto the power seat adjuster assembly.
  4. Install the four seat cushion pan brackets (3) and bolts (2). Tighten the bolts securely.
  5. Install the wire harness (5). Make sure all harness retainers are fully engaged to the adjuster assembly and seat cushion pan.
  6. Connect the wire harness connectors (1, 6 and 7) to the three power seat motors.
  7. Install the front seat. Refer to SEAT, FRONT, INSTALLATION .
  8. Reconnect the negative battery cable.
  9. Verify power seat operation.
