Belly Pan: Installation: Installation

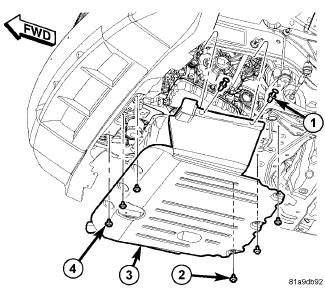

Fig 1: Belly Pan & Fasteners
GC0099085Courtesy of CHRYSLER GROUP, LLC
  1. Install the belly pan (3) and install the front (4) and rear (2) screws.
  2. Install the side push pin fasteners (1).
  3. If required, position the wheelhouse splash shield back. Refer to SHIELD, SPLASH, FRONT WHEELHOUSE, INSTALLATION .
