P0521-Engine Oil Pressure Sensor Performance: Notes

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article  .

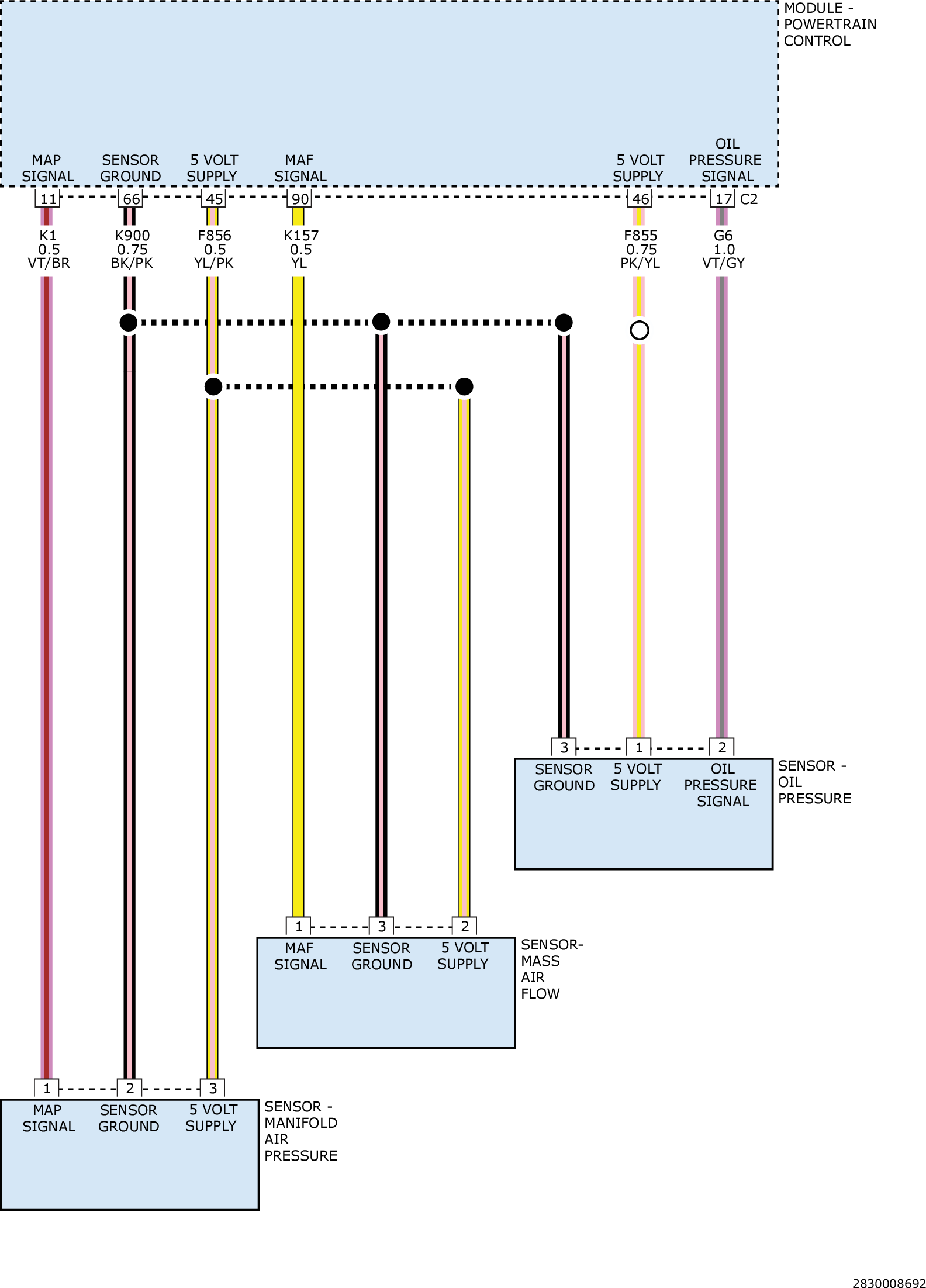

Fig 1: Oil, Manifold Air Pressure & Mass Air Flow Sensors Circuit Diagram

Courtesy of CHRYSLER GROUP, LLC
