Unit, ELECTROHYDRAULIC Control: Installation: Installation

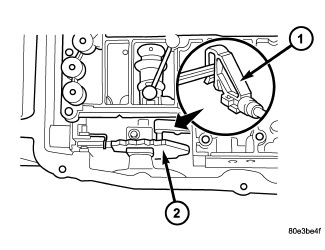

Fig 1: Connect The Selector Valve To The Detent Plate

Courtesy of CHRYSLER GROUP, LLC

1 - SELECTOR VALVE

2 - DETENT PLATE

1. Position the electrohydraulic unit in the transmission housing.
2. Insert selector valve (1) in driver of detent plate (2). When installing the electrohydraulic control module in the transmission housing, the plastic part of the selector valve (1) must engage in the driver of the detent plate (2).
   Fig 2: Removing/Installing Electrohydraulic Unit

   Courtesy of CHRYSLER GROUP, LLC

   1 - HEAT SHIELD

   2 - ELECTROHYDRAULIC UNIT

   3 - BOLT

   4 - OIL FILTER

   5 - OIL PAN

   6 - CLAMPING ELEMENT

   7 - BOLT

   8 - 13-PIN PLUG CONNECTOR

   9 - BOLT

   10 - ADAPTER PLUG

3. Install the Torx® socket bolts (3) and torque to 8 N.m (71 in.lbs.).
4. Install a new oil filter (4).
5. Install oil pan (5) and torque the oil pan bolts to 8 N.m (71 in.lbs.).
6. Install the adapter plug (10) into the transmission housing and tighten the bolt (9) to 2.5 N.m (22 in.lbs.).
   Fig 3: Removing/Installing Wiring Connector Plug

   Courtesy of CHRYSLER GROUP, LLC

   1 - PLUG CONNECTOR

   2 - ADAPTER PLUG

7. Check O-ring on plug connector (1), and replace if necessary.
8. Install the plug connector (1) into the adapter plug (2). Turn bayonet lock of adapter plug (2) clockwise to connect plug connector (1).
