Fuel Tank Filler Tube: Installation: Installation

Fig 1: Filler Tube Tank Connection

Courtesy of CHRYSLER GROUP, LLC

1. Install fuel filler tube. Connect fuel filler tube hose to fuel tank neck and tighten clamp to 4 N.m (35 in. lbs.).

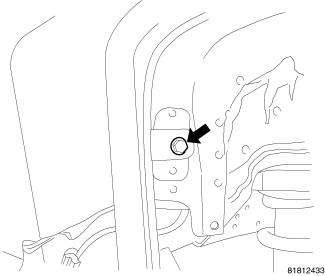

   Fig 2: Filler Tube Mounting Bolt

   Courtesy of CHRYSLER GROUP, LLC
2. Install fuel filler tube mounting screw and tighten to 9 N.m (79.5 in. lbs.).

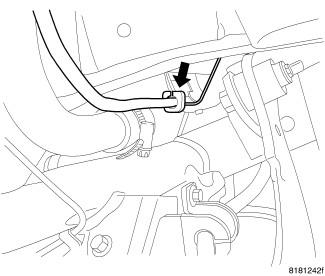

   Fig 3: Vent Line Connection

   Courtesy of CHRYSLER GROUP, LLC
3. Connect filler tube vent line.

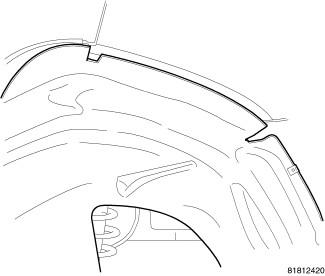

   Fig 4: Splash Shield

   Courtesy of CHRYSLER GROUP, LLC
4. Install the inner splash shield.
5. Install rear tire.
6. Lower vehicle.
7. Install fuel filler tube cap.
8. Install the negative battery cable.
9. Install the air cleaner lid and makeup air hose.
