Diagnostic Test

VERIFY ACTIVE DTC
NOTE:
Make sure the battery is fully charged.
1. Turn the ignition on.
2. Wait ten seconds.
3. With the scan tool, read the Occupant Restraint Controller (ORC) DTCs.
  Does the scan tool display active B212C-IGNITION RUN/START INPUT CIRCUIT OPEN DTC?

  Yes
  - Go To 2.
  No
  - Refer to STANDARD PROCEDURE and perform the AIRBAG SYSTEM INTERMITTENT TEST.
INSPECT AIRBAG RUN-START FUSE
1. Turn the ignition off.
2. Remove the Airbag Run-Start TIPM Fuse 35 from the TIPM and inspect the fuse.
  NOTE:
  Check the connectors - Clean and repair as necessary.

  Is the Run/Start fuse open?

  Yes
  - Go To 3.
  No
  - Go To 5.
CHECK (F201) FUSED RUN/START RELAY OUTPUT CIRCUIT RESISTANCE

Fig 1: Checking Fused Run/Start Relay Output Circuit For Short To Ground
Courtesy of CHRYSLER GROUP, LLC
1. Measure the resistance of the (F201) Fused Run - Start Relay Output circuit between the Airbag Run-Start TIPM Fuse 35 (output side) terminal and ground.
  Is the resistance below 100.0 Ohms?

  Yes
  - Go To 4.
  No
  - Using the wiring diagram/schematic as a guide, inspect the related wiring and connectors. Look for chafed, pierced, pinched or partially broken wires and broken, bent, pushed out, spread, corroded, or contaminated terminals.
  - Replace Airbag Run-Start TIPM Fuse 35.
  - Refer to STANDARD PROCEDURE and perform the AIRBAG SYSTEM VERIFICATION TEST.
CHECK (F201) FUSED RUN/START RELAY OUTPUT CIRCUIT RESISTANCE WITH ORC DISCONNECTED

Fig 2: Checking Fused Run/Start Relay Output Circuit For Short To Ground
Courtesy of CHRYSLER GROUP, LLC

WARNING:
If the Occupant Restraint Controller (ORC) is dropped at any time, it must be replaced. Failure to take the proper precautions can result in accidental airbag deployment. Failure to follow these instructions may result in possible serious or fatal injury.

WARNING:
Turn the ignition off, disconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.
1. Disconnect both ORC connectors.
  NOTE:
  Check the connectors - Clean and repair as necessary.
2. Connect the SRS Load Tool Adapter (special tool #8443-25, 56 Way ACM Adapter) to the ORC connectors.
3. Measure the resistance of the (F201) Fused Run - Start Relay Output circuit between C2-32 of the SRS Load Tool Adapter (special tool #8443-25, 56 Way ACM Adapter) and ground.
  Is the resistance below 100.0 Ohms?

  Yes
  - Repair the (F201) Fused Run - Start Relay Output circuit for a short to ground.
  - Replace the Airbag Run-Start TIPM Fuse 35.
  - Refer to STANDARD PROCEDURE and perform the AIRBAG SYSTEM VERIFICATION TEST.
  No
  - Replace the ORC in accordance with the Service Information.
  - Replace the Airbag Run-Start TIPM Fuse 35.
  - Refer to STANDARD PROCEDURE and perform the AIRBAG SYSTEM VERIFICATION TEST.
CHECK AIRBAG RUN - START TIPM FUSE 35 SUPPLY VOLTAGE

Fig 3: Identifying Airbag Run-Start TIPM Fuse 35 (Supply Side) Terminal
Courtesy of CHRYSLER GROUP, LLC
1. Turn the ignition on.
2. Measure the voltage between the Airbag Run-Start TIPM Fuse 35 (supply side) terminal and ground.
  Is the voltage above 6.0 Volts?

  Yes
  - Go To 6.
  No
  - Replace the Totally Integrated Power Module (TIPM) in accordance with the Service Information.
  - Refer to STANDARD PROCEDURE and perform the BODY SYSTEM VERIFICATION TEST.
CHECK (F201) FUSED RUN - START RELAY OUTPUT CIRCUIT FOR AN OPEN

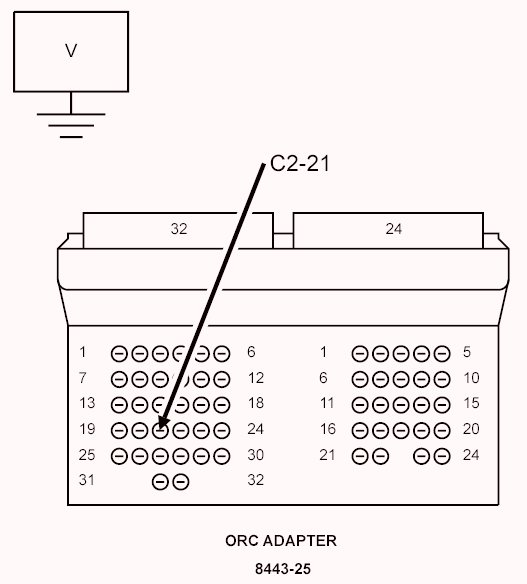

Fig 4: Checking Fused Run/Start Relay Output Circuit For An Open
Courtesy of CHRYSLER GROUP, LLC

WARNING:
Turn the ignition off disconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.
1. Reinstall the Airbag Run-Start TIPM Fuse 35.
2. Disconnect both ORC connectors.
  NOTE:
  Check the connectors - Clean and repair as necessary.
3. Install the SRS Load Tool Adapter (special tool #8443-25, 56 Way ACM Adapter) to the ORC connectors.
  WARNING:
  Turn the ignition on, then reconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.
4. Measure the voltage of the (F201) Fused Run - Start Relay Output circuit between the SRS Load Tool Adapter (special tool #8443-25, 56 Way ACM Adapter) connector cavity C2-21 and ground.
  Is the voltage above 6.0 Volts?

  Yes
  - Replace the ORC in accordance with the Service Information.
  - Refer to STANDARD PROCEDURE and perform the AIRBAG SYSTEM VERIFICATION TEST.
  No
  - Go To 7.
CHECK (F201) FUSED RUN - START RELAY OUTPUT CIRCUIT FOR AN OPEN

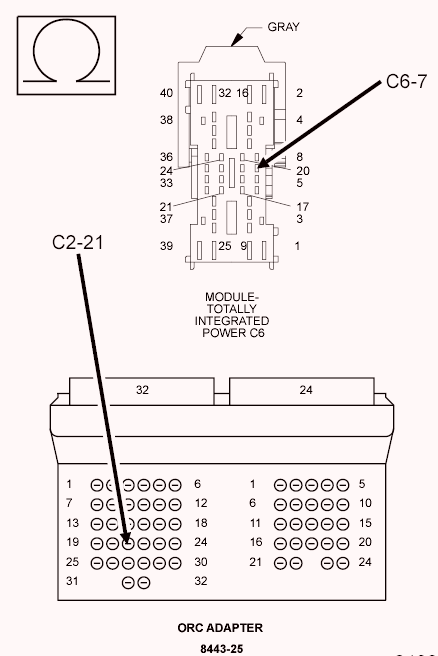

Fig 5: Checking Fused Run/Start Relay Output Circuit
Courtesy of CHRYSLER GROUP, LLC

WARNING:
Turn the ignition off disconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.
1. Disconnect the TIPM C6 connector.
  NOTE:
  Check the connectors - Clean and repair as necessary.
2. Measure the resistance of the (F201) Fused Run - Start Relay Output Circuit between the SRS Load Tool Adapter (special tool #8443-25, 56 Way ACM Adapter) connector cavity C2-21 and cavity 7 of the TIPM C6 connector.
  Is the resistance below 5.0 Ohms?

  Yes
  - Replace the Totally Integrated Power Module (TIPM) in accordance with the Service Information.
  - Refer to STANDARD PROCEDURE and perform the BODY SYSTEM VERIFICATION TEST.
  No
  - Repair the open (F201) Fused Run/Start Relay Output circuit.
  - Refer to STANDARD PROCEDURE and perform the AIRBAG SYSTEM VERIFICATION TEST.
