P0645-A/C Clutch Control Circuit: Notes

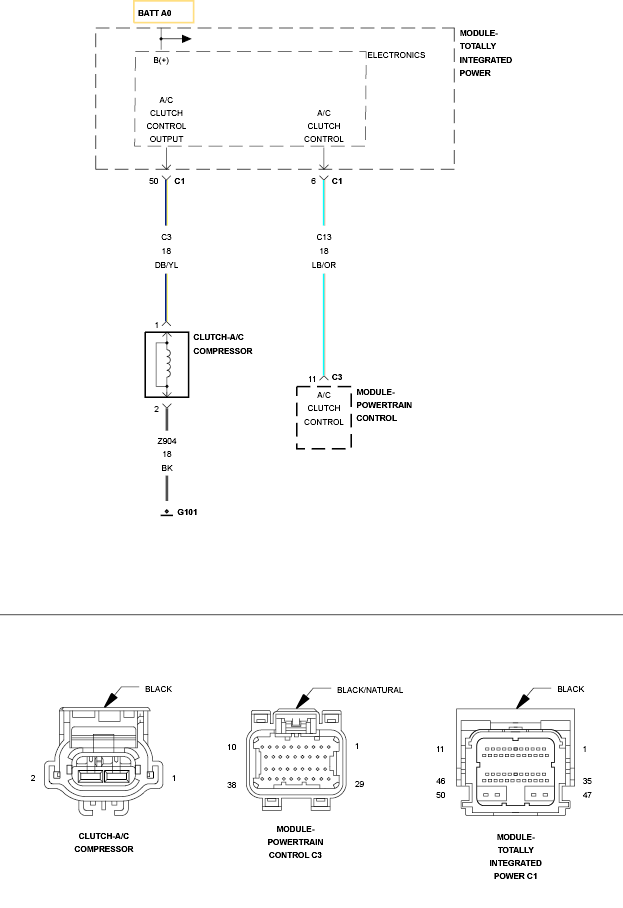

Fig 1: A/C Compressor Clutch Circuit Wiring Diagram

Courtesy of CHRYSLER GROUP, LLC

For a complete wiring diagram refer to appropriate SYSTEM WIRING DIAGRAMS article  .
