Module, Hands Free (HFM): Installation: Installation

WARNING: This page is about a different car, the 2011 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

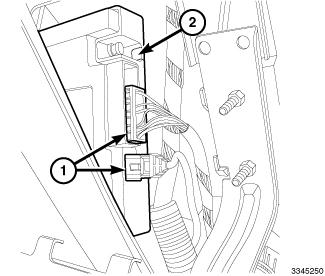

Fig 1: HFM Electrical Connectors & Upper HFM Retainer

Courtesy of CHRYSLER LLC

Position the HFM into position and install the upper retainer (2).
Connect the HFM electrical connectors (1).

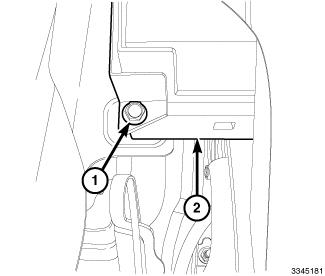

Fig 2: Lower HFM & Retainer
Courtesy of CHRYSLER LLC
Through the instrument panel end support install the lower HFM (2) retainer (1).

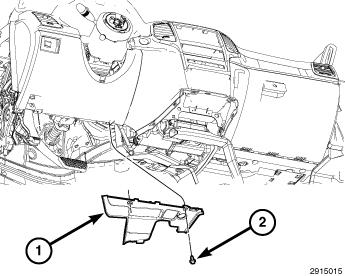

Fig 3: Retaining Clips And Cover
Courtesy of CHRYSLER LLC
Position the steering column opening cover (1) back and seat the retaining clips fully.

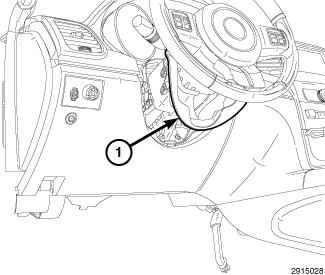

Fig 4: Steering Column Trim Ring
Courtesy of CHRYSLER LLC
Position the steering column trim ring back and seat the retaining clips fully.

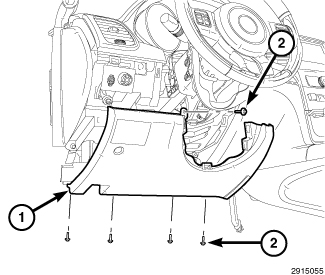

Fig 5: Bolts & Drivers Side Silencer Panel
Courtesy of CHRYSLER LLC
Install the silencer panel (1) and install the screws (2).

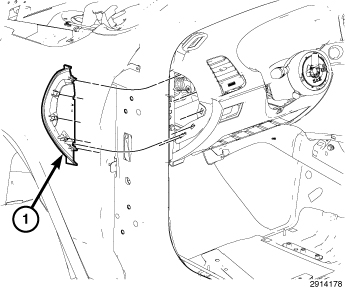

Fig 6: Driver Side End Cap
Courtesy of CHRYSLER LLC
Install the driver side end cap (1).
Connect the negative battery cable and verify operation.
